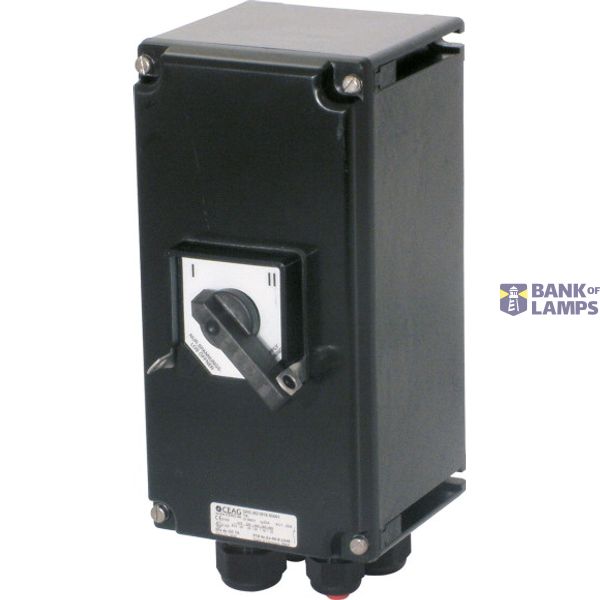

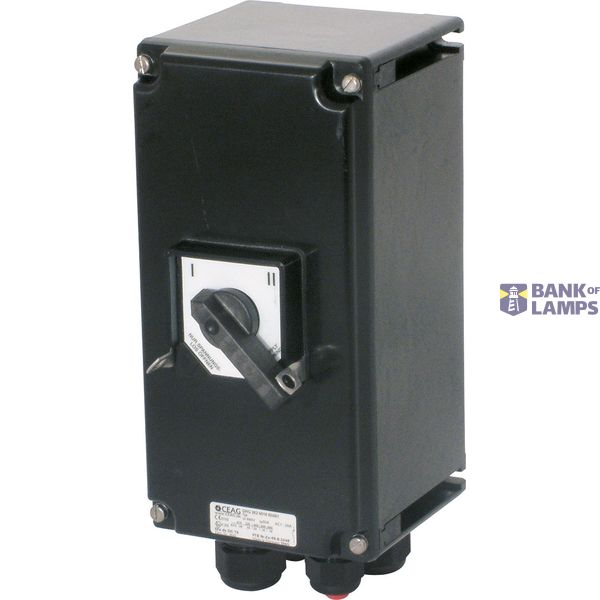

Ex-Main current switch 20A Change-Over, I - II

Ex-Main current switch 20A Change-Over, I - II image 1

Ex-Main current switch 20A Change-Over, I - II image 2

Ex-Main current switch 20A Change-Over, I - II image 3

Ex-Main current switch 20A Change-Over, I - II image 4

Ex-Main current switch 20A Change-Over, I - II image 5

Ex-Main current switch 20A Change-Over, I - II image 6

Ex-Main current switch 20A Change-Over, I - II image 7

Ex-Main current switch 20A Change-Over, I - II image 8

Ex-Main current switch 20A Change-Over, I - II image 9

Ex-Main current switch 20A Change-Over, I - II image 10

Ex-Main current switch 20A Change-Over, I - II

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Main current switch 20A Change-Over, I - II
Brand	EATON
ETIM	EC000522

Packing details

Packing level 1

4250217410512

Description

Product: Ex-Main switch Umschalter; Rated current: 20A;Application area: Zone 1, Zone 21, Zone 2, Zone 22;Content: 3-pole;Auxillary contact: 1x Normally open & 1x Normally close;Cable gland: 3x M32;Material: Polyamide;Degree of protection: IP66 (EN 60529);Protection class: I;Permissible ambient temperature: -20°C up to +40°C;Frequency: 50Hz/60Hz;Connecting terminals: 2x 4mm² (Main contact), 2x 0,5 up to 2,5mm² (Auxillary contact);Padlocking facility: in Stellung I und II;Label: I - II
