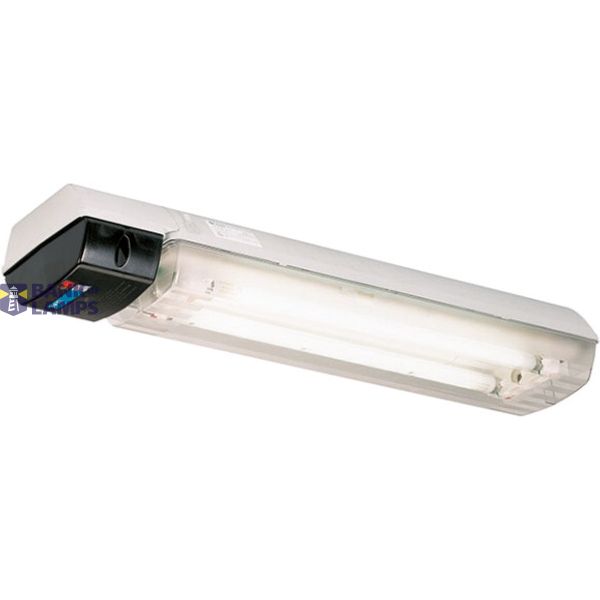

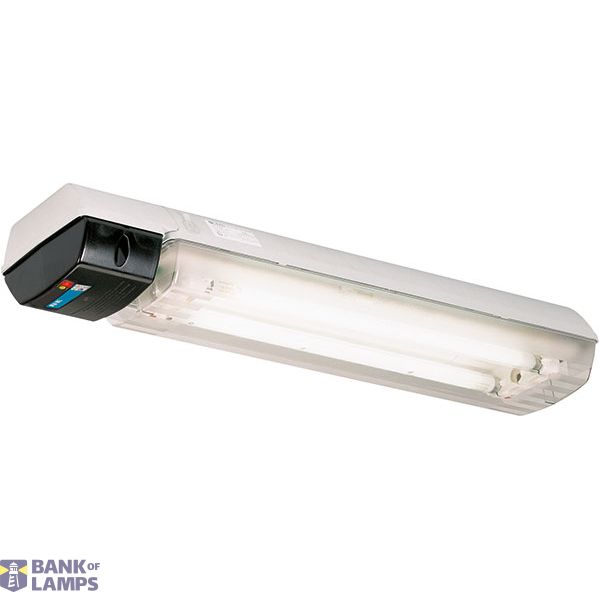

Ex-Linear light fitting with emergency light function for zone 1/21, Variant: eLLK 92018/18 NE 1/6-1K

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Linear light fitting with emergency light function for zone 1/21, Variant: eLLK 92018/18 NE 1/6-1K
Brand	EATON
ETIM	EC001952
Width	188 mm
Length	900 mm
Height/depth	130 mm
Lamp type	Fluorescent lamp
Impact strength	IK10
Nominal voltage	120-254 V
Degree of protection (IP)	IP66
Beam angle	Wide beam 41-80°
Rated luminous flux according to IEC 62722-2-1	2.7 lm

Packing details

Packing level 1

4250959915719

Other Technical data

Mounting method	Wall-/ceiling mounting
Protection class	I
Lamp holder	G13
Conductor cross section	6 mm²
Connection type	Screwed terminal
Voltage type	AC
Suitable for lamp power	18 W
Type of control gear	Electronic ballast
Adjustable	No
Number of poles	6
Housing material	Plastic
Material cover	Plastic, transparent
For Ex-zone gas	1, 2
With light source	No
Suitable for number of lamps	2
With control gear	Yes
For Ex-Zone dust	21, 22
Constant light output (CLO)	No
Type of wiring	Suitable for through wiring
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC62722-2-1	-25-55 °C
Light distributor	Reflector
Exchangeable control gear	No
Power factor	0.95

Description

Ex-LED-Linear light fitting with emergency light function for zone 1/21; Variant: eLLK 92018/18 NE 1/6-1K; Voltage: 220 V - 254 V AC; Frequency: 50 Hz / 60 Hz; Through wiring: No; Terminalpoints: 1x 6 Terminal points; Lamp: 2x T26 / 18 W (not included); Lamp base: G13; Degree of protection: IP66; Protection class: I; Lumen in emergency operation 1,5 hours: 1215 lm; Lumen in emergency mode 3 hours: 607 lm; Emergency operating time adjustable; Charging time over 90% control: 14 hours; Protective cover material: Polycarbonate; Enclosure material: Glass-fibre reinforced polyester; Enclosure color: Light grey (RAL 7035); Cable entry: 2x M25 Thread (Plastic) with 2x M25 Cable gland (Plastic) inclusive 1x M25 Blanking plug (Plastic)
