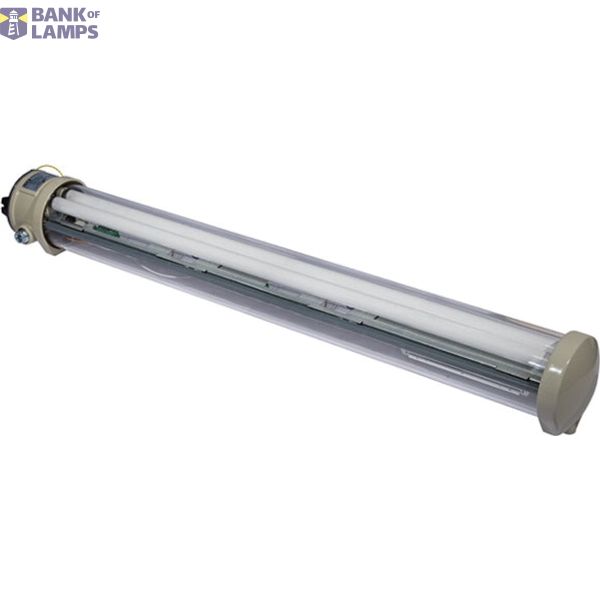

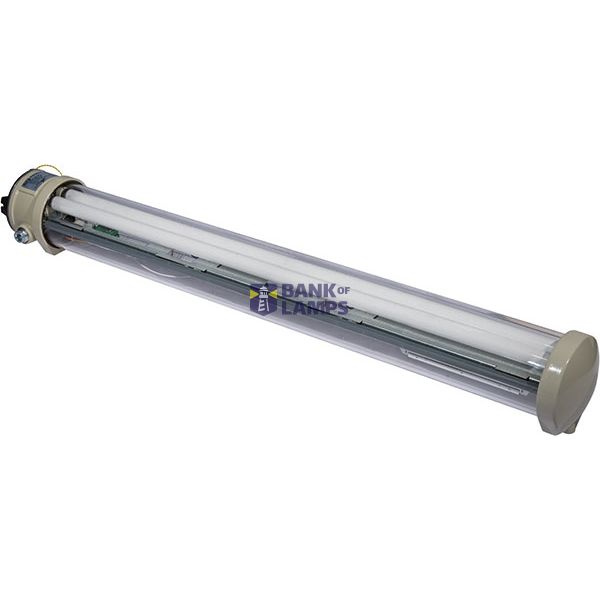

Ex-Linear light fitting for zone 1/21, Variant: AB 12265 LED1EF, Cable entry: 2x M25
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-Linear light fitting for zone 1/21, Variant: AB 12265 LED1EF, Cable entry: 2x M25 |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 236 mm |
| Height/depth | 144 mm |
| Lamp type | Fluorescent lamp |
| Nominal voltage | 230-277 V |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 8435156922524 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description
Ex-Linear light fitting for zone 1/21; Variante: AB 12265 LED1EF; Operation voltage: maximum 277V;Frequenz: 50Hz / 60Hz;Protection class: I;Degree of protection: IP67;Lamp: 2x T8 LED-Tube;Permissible ambient temperature:: -20°C up to +55°C;Enclosure material: Copper-free aluminium with powder coating;Enclosure color: Gray; Cable entry: 2x M25 Thread hole (Metal) with 1x M25 Ex-d Blanking plug
