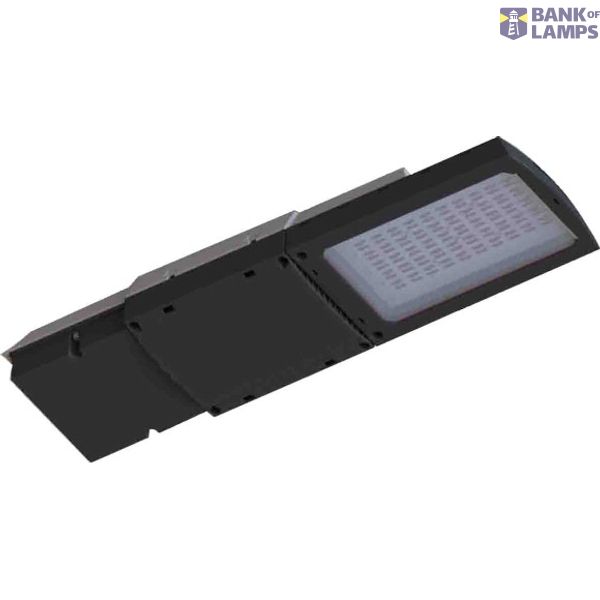

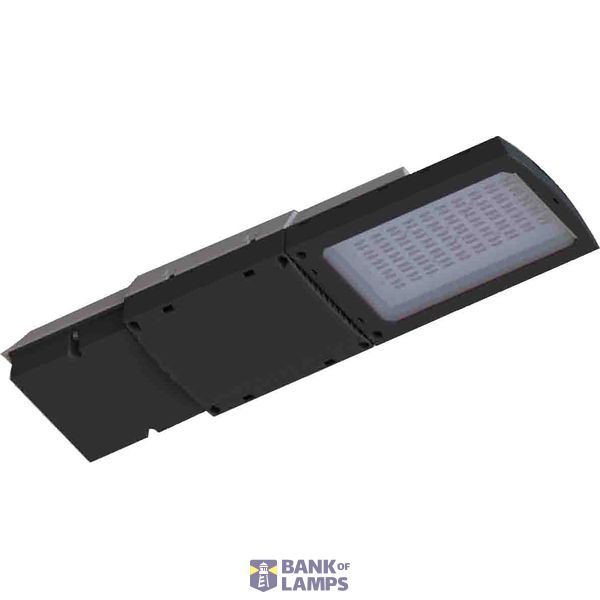

Ex-Linear lamp with LED-modul for zone 1/21, Variant: ExLin 3L-1 GFS 750 T1 1/6 M25K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-Linear lamp with LED-modul for zone 1/21, Variant: ExLin 3L-1 GFS 750 T1 1/6 M25K |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 201 mm |
| Length | 770 mm |
| Height/depth | 115 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 110-277 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 5000 K |
| Max. system power | 22 W |
| Rated luminous flux according to IEC 62722-2-1 | 2.37 lm |
Packing details
| Packing level 1 | 4251510722616 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Outer diameter | 0 mm |
| Lamp holder | None |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 22 W |
| Type of control gear | LED operating device voltage-controlled |
| Adjustable | No |
| Number of poles | 6 |
| Housing material | Plastic |
| Material cover | Glass matt/satinized |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -40-55 °C |
| Light distributor | Diffuser lens/optic/panel |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Energy efficiency class of the provided exchangeable built-in lamp | A++ |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker C16 | 37 |
| Max. number of luminaires per miniature circuit breaker B16 | 22 |
| Exchangeable control gear | No |
| Power factor | 0.92 |
Description
Ex-Linear lamp with LED-modul for zone 1/21; Variant: ExLin 3L-1 FCS 750 T1 1/6 M25K; Voltage: 110 V - 277 V AC and 110 V - 277 V DC; Frequency: 50 Hz / 60 Hz; Through wiring: No; Terminalpoints: 1x 6 Terminal 6mm²; Lumen: 2750 lm; Light color: 5000K; color rendering index: 70 CRI; Permissible ambient temperature: -40°C up to +55°C; Degree of Protection: IP66; Protection class: I; Protective cover: Glas laminated with splitter protection foil (clear); Weight: 6,7 kg; Dimensions: 770 mm x 201 mm x 115 mm; Cable entry: 2x M25 Thread (Plastic) with 2x M25 Cable gland (Plastic) inclusive 1x M25 Blanking plug (Plastic)
