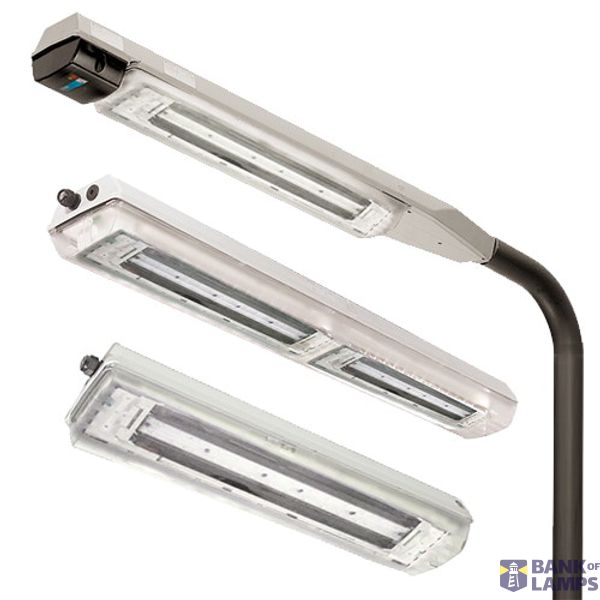

Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K image 1

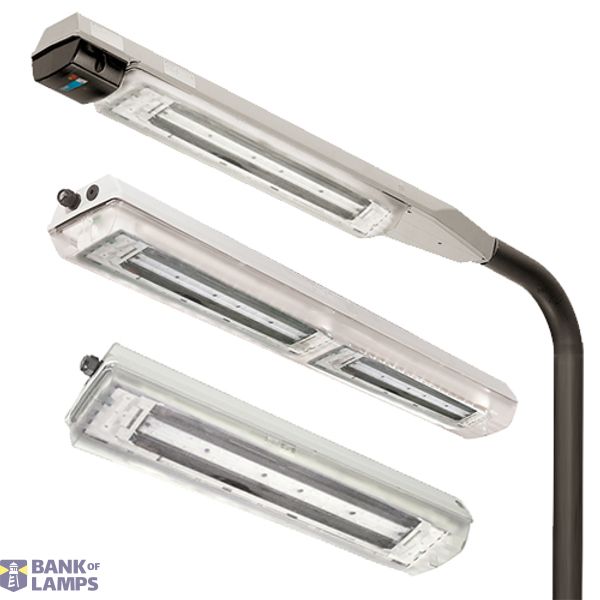

Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K image 2
Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K image 3
Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K image 4
Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K thumbnail 1
Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K thumbnail 2
Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K thumbnail 3
Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K thumbnail 4
EATON

Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-LED-Mast Linear light fitting with emergency light function for zone 1/21, Variant: eLLM 92 LED 400A NE 1/3-1K 4000K
Brand EATON
ETIM EC001952
Width 188 mm
Length 1.06 mm
Height/depth 130 mm
Lamp type Fluorescent lamp
Impact strength IK10
Nominal voltage 120-254 V
Degree of protection (IP) IP66
Beam angle Wide beam 41-80°
Colour temperature 4000 K

Packing details

Packing level 1 4251510735104

Other Technical data

Mounting method Mast fastening
Protection class I
Lamp holder G13
Conductor cross section 6 mm²
Connection type Screwed terminal
Voltage type AC
Suitable for lamp power 17 W
Type of control gear Electronic ballast
Adjustable No
Number of poles 6
Housing material Plastic
Material cover Plastic, transparent
For Ex-zone gas 1, 2
With light source No
Suitable for number of lamps 2
With control gear Yes
For Ex-Zone dust 21, 22
Colour of light White
Constant light output (CLO) No
Type of wiring Suitable for through wiring
Degree of protection (NEMA) Other
Rated ambient temperature according to IEC62722-2-1 -25-55 °C
Light distributor Reflector
Exchangeable control gear No
Power factor 0.95

Description

Ex-LED-Mast linear light fitting with emergency lighting function for zone 1/21; Variant: eLLM 92 LED 400A NE 1/3-1K 4000K; Voltage: 110 V - 254 V AC and 110 V - 250 V DC; Frequency: 50 Hz / 60 Hz; Through wiring: No; Terminalpoints: 1x 3 Terminal points; Lamp: ellk-2-C (2 x 13 W); Lumen: 2565 lm; Lumen in emergency mode 1.5 hours: 1282 lm;Lumen in emergency mode 3 hours: 877 lm;Charging time over 90% control: 14 hours;Emergency operating time adjustable;Light color: 4000K; Degree of protection: IP66; Protection class: I; Protective cover material: Polycarbonate; Enclosure material: Glass-fibre reinforced polyester; Enclosure color: Light grey (RAL 7035); Cable entry: 1x M25 Thread (Plastic) with 1x M25 Cable gland (Plastic)
