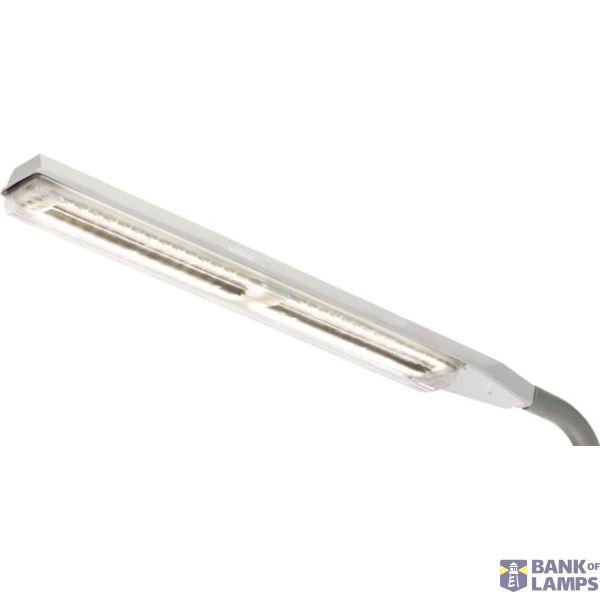

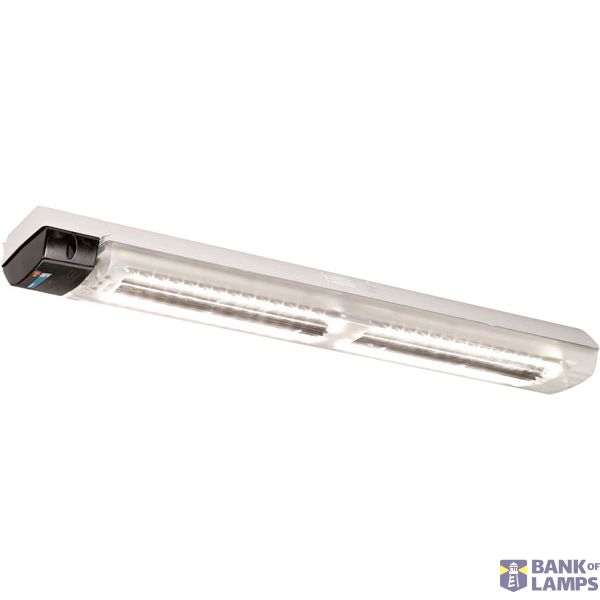

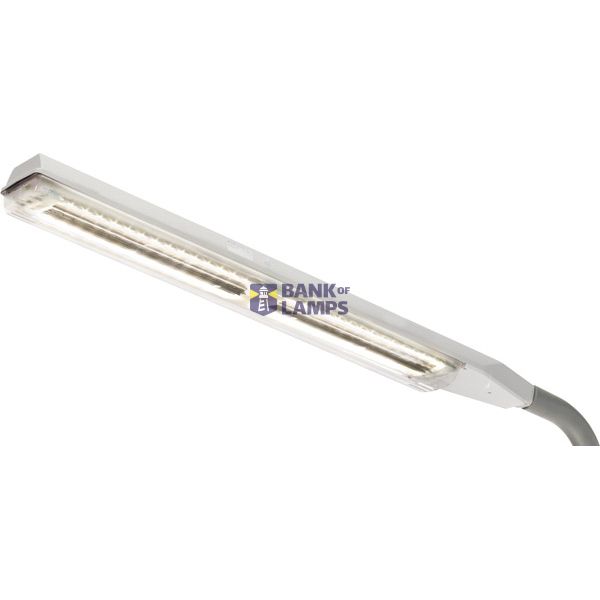

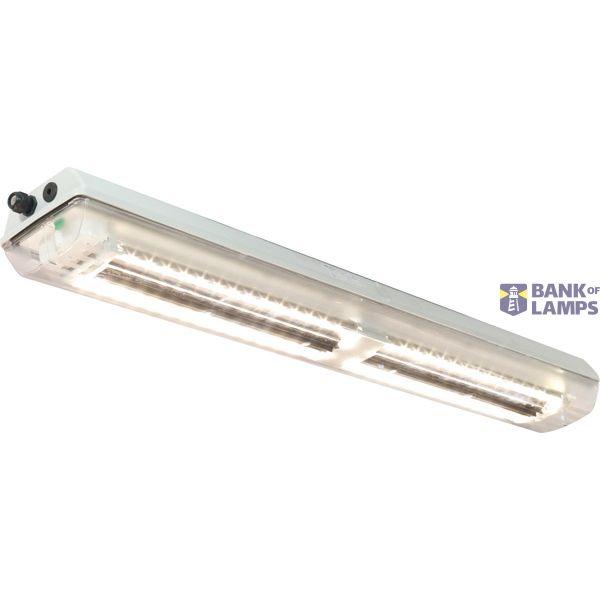

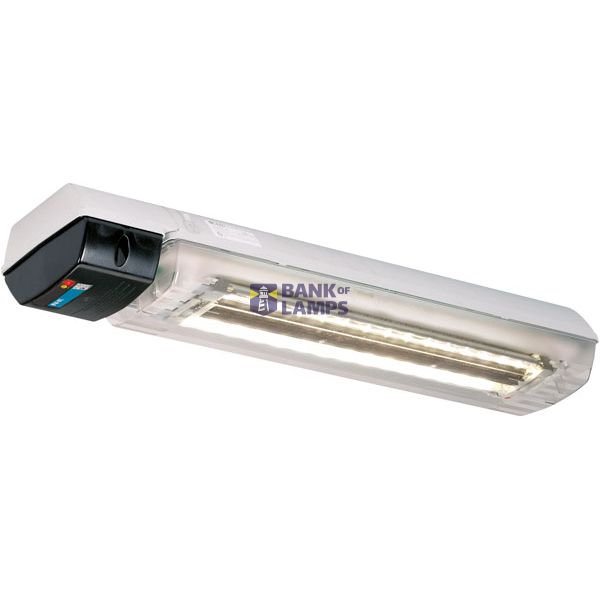

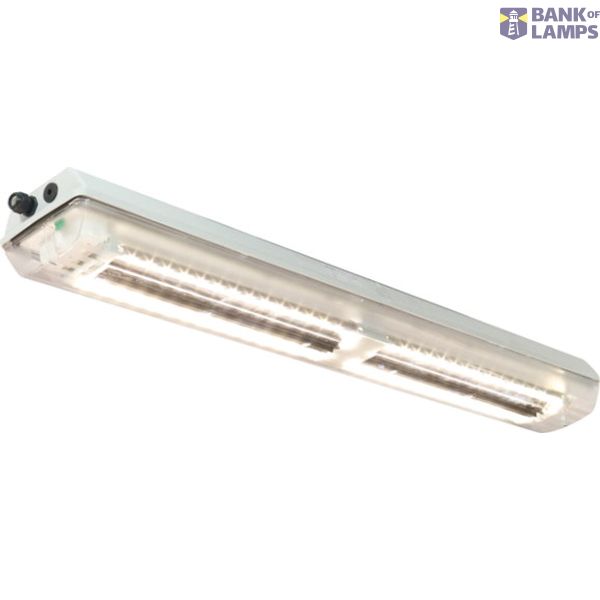

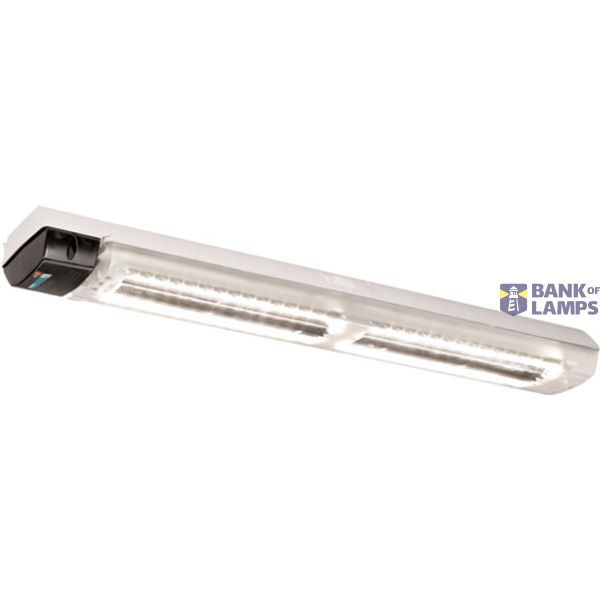

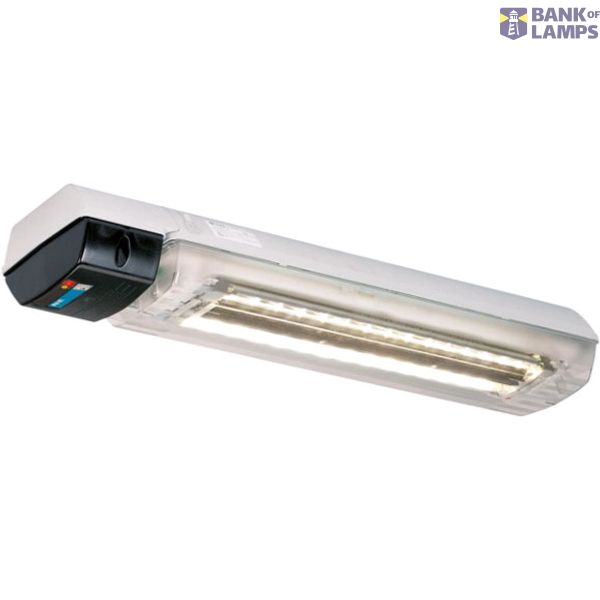

Ex-LED-Mast linear light fitting for zone 1 / 21 eLLK 92 LED 800A 1/3-1K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-LED-Mast linear light fitting for zone 1 / 21 eLLK 92 LED 800A 1/3-1K |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 188 mm |
| Length | 1.66 mm |
| Height/depth | 130 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 110-254 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
Packing details
| Packing level 1 | 4251510709235 |
Other Technical data
| Mounting method | Mast fastening |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 26 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Plastic |
| Material cover | Plastic, transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -25-55 °C |
| Light distributor | Reflector |
| Exchangeable control gear | No |
| Power factor | 0.95 |
Description
Ex-LED-Mast linear light fitting for zone 1 / 21 eLLM 92 LED 800A 1/3-1K,Voltage Range: 110 V - 254 V AC bei 50/60 Hz and 110 V - 250 V DC,Through wiring: No, Terminals: 1 x 3 terminal points,Light Colour: 5700 K, Lumen: 5350 lm, Weight: 13,1 kg,1 x M 25 Cable gland (plastic)
