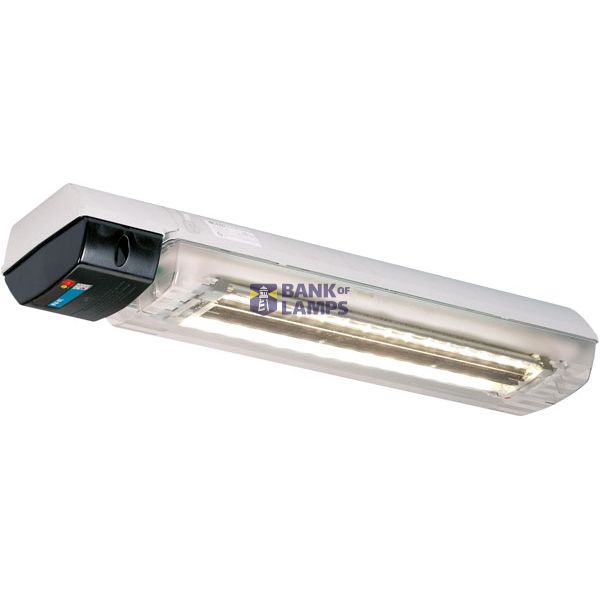

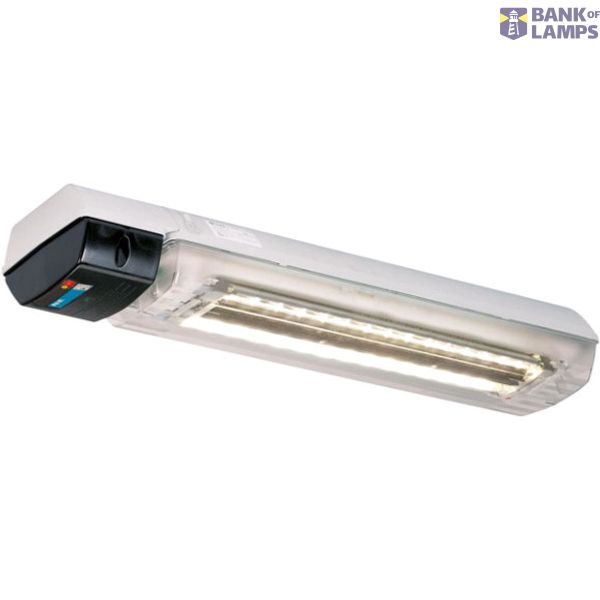

Ex-LED-Linear light fitting with emergency light function for zone 1 / 21 eLLK 92 LED 400A NE 1/6-1K

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-LED-Linear light fitting with emergency light function for zone 1 / 21 eLLK 92 LED 400A NE 1/6-1K
Brand	EATON
ETIM	EC001952
Width	188 mm
Length	900 mm
Height/depth	130 mm
Lamp type	LED exchangeable
Impact strength	IK10
Nominal voltage	120-254 V
Degree of protection (IP)	IP66
Beam angle	Wide beam 41-80°
Colour temperature	5700 K

Packing details

Packing level 1

4251510702694

Other Technical data

Mounting method	Wall-/ceiling mounting
Protection class	I
Lamp holder	G13
Conductor cross section	6 mm²
Connection type	Screwed terminal
Voltage type	AC
Suitable for lamp power	17 W
Type of control gear	Electronic ballast
Adjustable	No
Number of poles	6
Housing material	Plastic
Material cover	Plastic, transparent
For Ex-zone gas	1, 2
With light source	No
Suitable for number of lamps	1
With control gear	Yes
For Ex-Zone dust	21, 22
Colour of light	White
Constant light output (CLO)	No
Type of wiring	Suitable for through wiring
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC62722-2-1	-25-45 °C
Light distributor	Reflector
Exchangeable control gear	No
Power factor	0.95

Description

Ex-LED-Linear light fitting with emergency light function for zone 1 / 21 eLLK 92 LED 400A NE 1/6-1K,Voltage Range: 120 V - 254 V AC by 50/60Hz, Through wiring: No, Terminals: 1 x 6 terminal points,Light Colour: 5700 K, Lumen: 2700 lm, Weight: 7,2 kg, Lumen in emergency operation 1,5 h: 1282 lm, Lumen in emergency operation 3,0 h: 877 lm,2 x M 25 Cable gland (plastic), 1 x Blanking plug (plastic),
