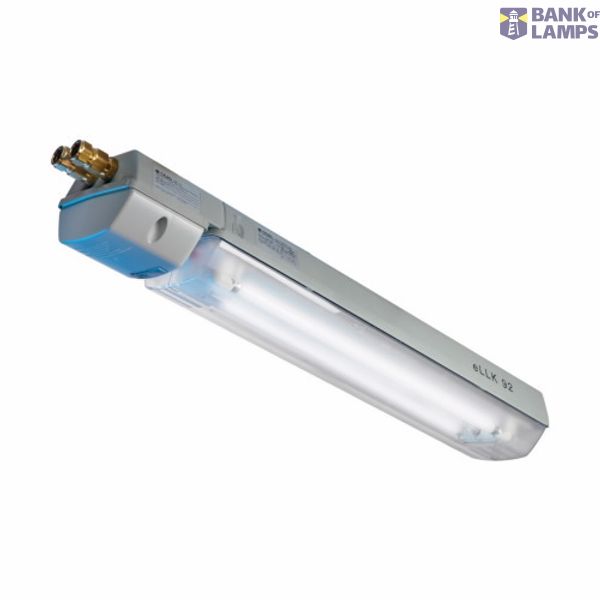

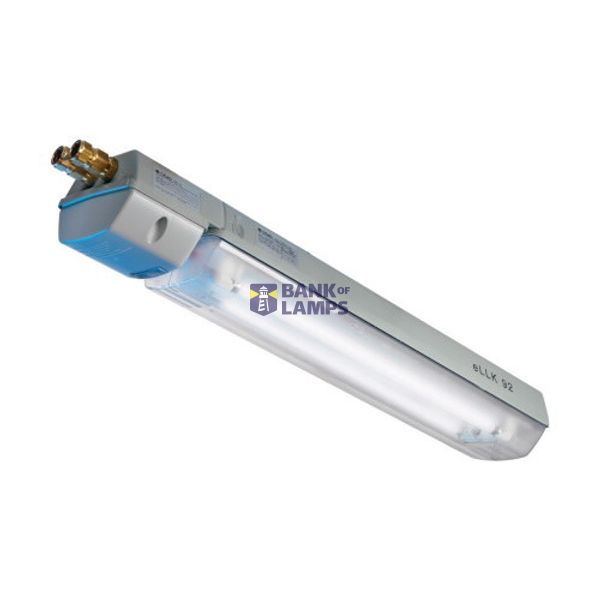

Ex-LED-Linear light fitting for zone 1/21, Variant: eLLK 92 LED 400A 1/6-1K 4000K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-LED-Linear light fitting for zone 1/21, Variant: eLLK 92 LED 400A 1/6-1K 4000K |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 188 mm |
| Length | 760 mm |
| Height/depth | 130 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 110-254 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
Packing details
| Packing level 1 | 4251510735951 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 17 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 6 |
| Housing material | Plastic |
| Material cover | Plastic, transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -25-55 °C |
| Light distributor | Reflector |
| Exchangeable control gear | No |
| Power factor | 0.95 |
Description
Ex-LED-Linear light fitting for zone 1/21; Variant: eLLK 92 LED 400A 1/6-1K 4000K; Voltage: 110 V - 254 V AC and 110 V - 250 V DC; Frequency: 50 Hz / 60 Hz; Through wiring: No; Terminalpoints: 1x 6 Terminal points; Lamp: ellk-2-C (2x 13 W); Lumen: 2565 lm; Light color: 4000K; Degree of protection: IP66; Protection class: I; Light output ratio: 86%; Protective cover material: Polycarbonate; Enclosure material: Glass-fibre reinforced polyester; Enclosure color: Light grey (RAL 7035); Cable entry: 2x M25 Thread (Plastic) with 2x M25 Cable gland (Plastic) inclusive 1x M25 Blanking Plug (Plastic)
