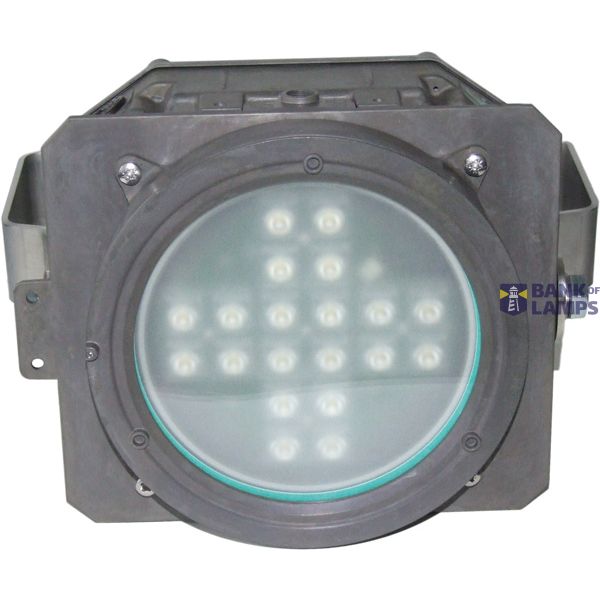

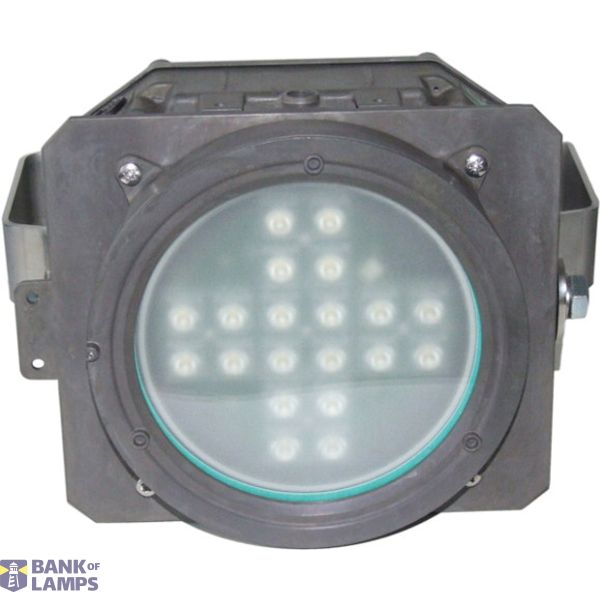

Ex-LED Floodlight for zone 1/21, Variant: PXLED 5L N 7 57 C E05
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-LED Floodlight for zone 1/21, Variant: PXLED 5L N 7 57 C E05 |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 265 mm |
| Length | 343 mm |
| Height/depth | 255 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 110-277 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 5700 K |
| Rated luminous flux according to IEC 62722-2-1 | 5.386 lm |
Packing details
| Packing level 1 | 4250959981349, 4251958117272 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 49 W |
| Type of control gear | LED operating device current-controlled |
| Adjustable | Yes |
| Number of poles | 6 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -50-55 °C |
| Light distributor | Focal lens |
| Max. number of luminaires per miniature circuit breaker C16 | 60 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Exchangeable control gear | No |
| Power factor | 0.93 |
Description
Ex-LED-Headlight lamp PXLED including swivel bracket for zone 1/21; Variant: PXLED 5L N 7 57 C E05; Light source: 49 W LED system; Lumen: 5207 lm; Light distribution: Narrow beam; Light color: 5700K;Permissible ambient temperature: -50°C up to +55°C; Degree of Protection: IP66; Protection class: I; Protection cover: clear hardened glass; Weight: 9,9 kg; Dimensions: 343 mm x 265 mm x 255 mm; Enclosure material: Anodized copper-free aluminum; Enclosure color: Dark grey; Cable entry: 2x M25 Blind plug (Plastic)
