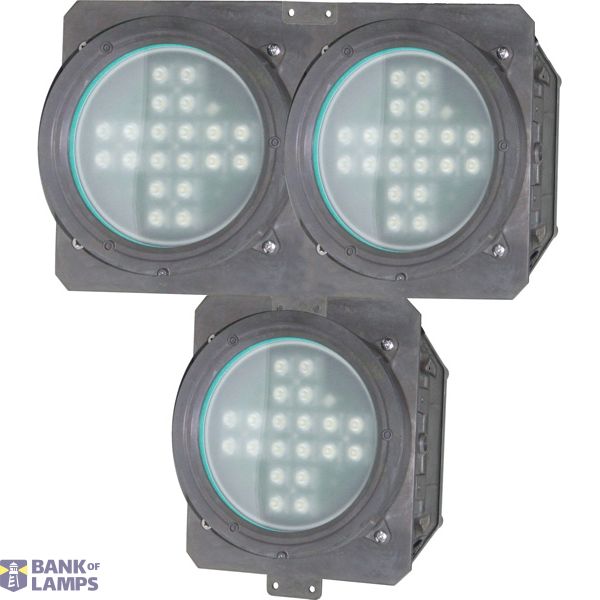

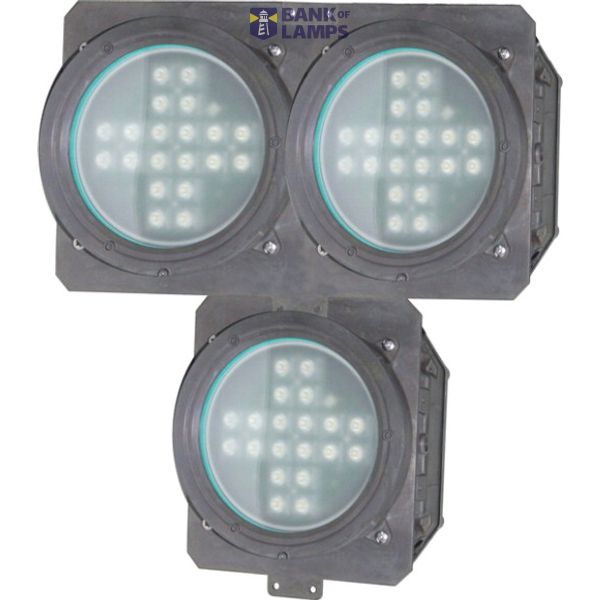

Ex-LED Floodlight for zone 1 / 21, PXLED 15L N 757 C E01, narrow beam
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-LED Floodlight for zone 1 / 21, PXLED 15L N 757 C E01, narrow beam |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 465 mm |
| Length | 607 mm |
| Height/depth | 325 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 110-277 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 5700 K |
| Max. system power | 147 W |
| Rated luminous flux according to IEC 62722-2-1 | 16.158 lm |
Packing details
| Packing level 1 | 4250959974280 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Outer diameter | 0 mm |
| Lamp holder | None |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 147 W |
| Type of control gear | LED operating device current-controlled |
| Adjustable | Yes |
| Number of poles | 6 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Suitable for number of lamps | 3 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 0 h |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -50-55 °C |
| LED nominal current at constant current | 0 mA |
| Light distributor | Focal lens |
| Highest energy efficiency class of the exchangeable lamp | E |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker C16 | 20 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Exchangeable control gear | No |
| Power factor | 0.95 |
Description
Ex-LED Floodlight for zone 1 / 21, PXLED 15L N 757 C E01,Light distribution: narrow beam, Illuminat: 3 x LED Modul, Lumen: 16158 lm, Power: 147 W,Voltage: 110 V - 277 V AC by 50 / 60 Hz and 127 V - 270 V DC,Cable entry: 2 x M 25 Cable gland ADE 1F2
