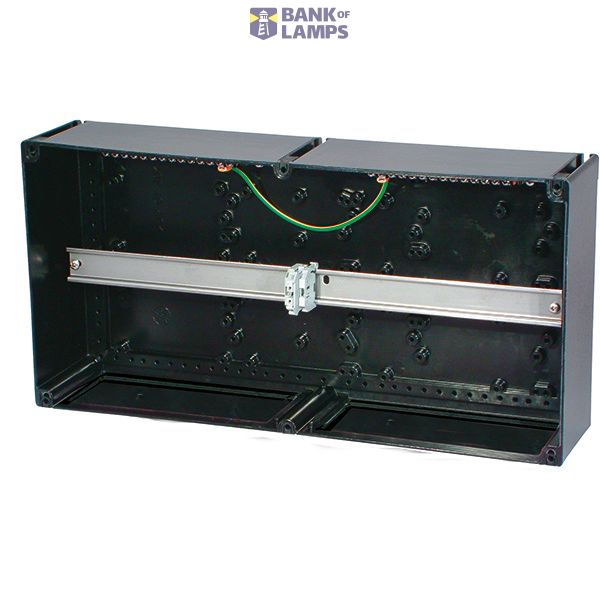

Ex-i Terminal box for zone 1/21, Variant: GHG746 03, Terminalpoints: 64x 2,5mm², Cable entry: 2x M40
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-i Terminal box for zone 1/21, Variant: GHG746 03, Terminalpoints: 64x 2,5mm², Cable entry: 2x M40 |
| Brand | EATON |
| ETIM | EC002713 |
| Mounting method | Surface mounted (plaster) |
| Colour | Black |
| Halogen free | Yes |
| Material | Plastic |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 4250217402579 |
Other Technical data
| Width | 271 mm |
| Depth | 136 mm |
| Surface protection | Untreated |
| Extension possible | No |
| With transparent cover | No |
| With cover | Yes |
| Number of connection clamps | 64 |
| Rated insulation voltage Ui | 690 V |
| Length | 544 mm |
| Sealable | No |
| Type of inlet | Cable |
| Circuit integrity | None |
| Operating temperature | -20-40 °C |
| Number of inlets | 35 |
| Explosion-tested version | Yes |
| Impact strength | > IK10 |
| Cover attachment | Screwed |
| Max. conductor cross section | 2.5 mm² |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Material plate thickness cabinet | 4 mm |
| Degree of protection (NEMA) | Other |
Description
Ex-i Terminal box for Zone 1/21;Variant: GHG746 03 zKLEMMENK. 64X2,5MM2 EX-Iz; Terminalpoints: 64x 2,5mm² (Blue); Enclosure material: Polyamide; Cable entry: 2x M40 Cable gland (Plastic) 1x M25 Cable gland (Plastic) and 32x M20 Cable gland (Plastic)
