EATON

EX-I TERMINAL BOX 48*2,5/1PE-S/1M40/24M2

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name EX-I TERMINAL BOX 48*2,5/1PE-S/1M40/24M2
Brand EATON
ETIM EC002713
Mounting method Surface mounted (plaster)
Colour Black
Halogen free Yes
Material Plastic
Degree of protection (IP) IP66

Packing details

Packing level 1 4250217428944

Other Technical data

Width 140 mm
Depth 95 mm
Surface protection Untreated
Extension possible No
With transparent cover No
With cover Yes
Number of connection clamps 48
Rated insulation voltage Ui 690 V
Length 182.5 mm
Sealable No
Type of inlet Other
Circuit integrity None
Operating temperature -20-40 °C
Number of inlets 25
Explosion-tested version Yes
Impact strength IK08
Cover attachment Screwed
Max. conductor cross section 2.5 mm²
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Material plate thickness cabinet 3 mm
Degree of protection (NEMA) Other

Description

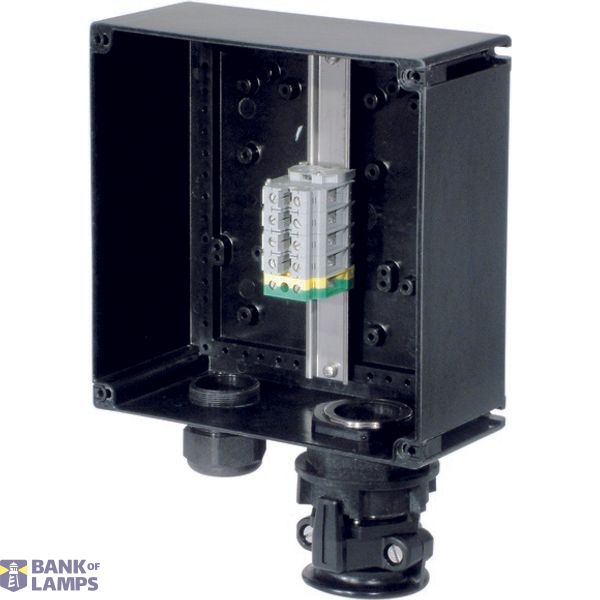

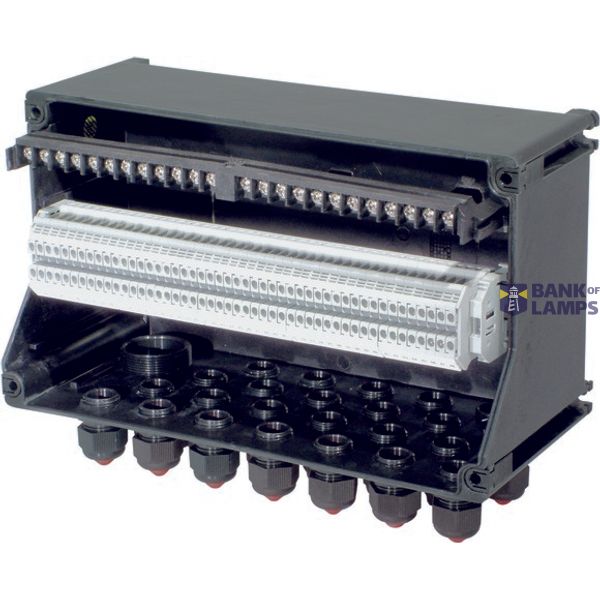

Ex-i Terminal box GHG 721 1 for Zone 1/21, 1 x M40 cable gland, 24x M20 cable gland, direct drilled enclosure48 x 2.5 mm² + 24x2x2.5 mm², 1 PE, cage clamp terminals, enclosure mat.: glass-fibre reinforced polyester
