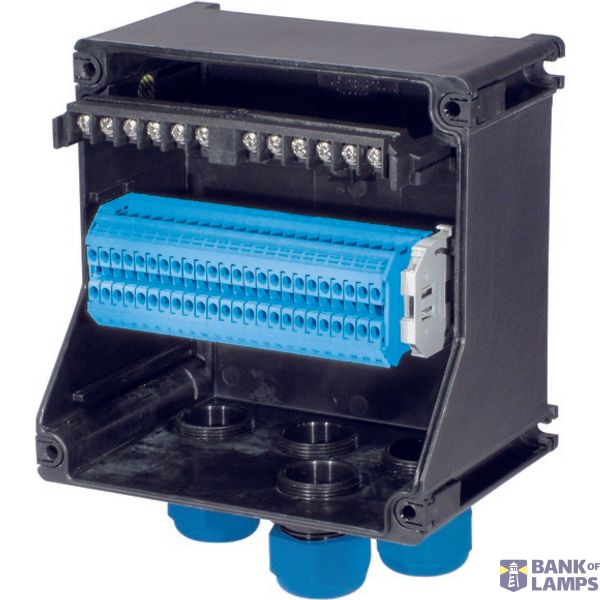

EX-I TERMINAL BOX 24*2,5/PE/1M32/3M32-4X
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EX-I TERMINAL BOX 24*2,5/PE/1M32/3M32-4X |
| Brand | EATON |
| ETIM | EC002713 |
| Mounting method | Surface mounted (plaster) |
| Colour | Black |
| Halogen free | Yes |
| Material | Plastic |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 4250217428814 |
Other Technical data
| Width | 120 mm |
| Depth | 95 mm |
| Surface protection | Untreated |
| Extension possible | No |
| With transparent cover | No |
| With cover | Yes |
| Number of connection clamps | 24 |
| Rated insulation voltage Ui | 690 V |
| Length | 140 mm |
| Sealable | No |
| Type of inlet | Other |
| Circuit integrity | None |
| Operating temperature | -20-40 °C |
| Number of inlets | 4 |
| Explosion-tested version | Yes |
| Impact strength | IK08 |
| Cover attachment | Screwed |
| Max. conductor cross section | 2.5 mm² |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Material plate thickness cabinet | 3 mm |
| Degree of protection (NEMA) | Other |
Description
Ex-i Terminal box GHG 721 0 for Zone 1/21, 1 x M32 cable gland, 3x M32 multiple cable gland, direct drilled enclosure24 x 2.5 mm² + 12x2x2.5 mm², 1 PE, screw terminals, enclosure mat.: glass-fibre reinforced polyester
