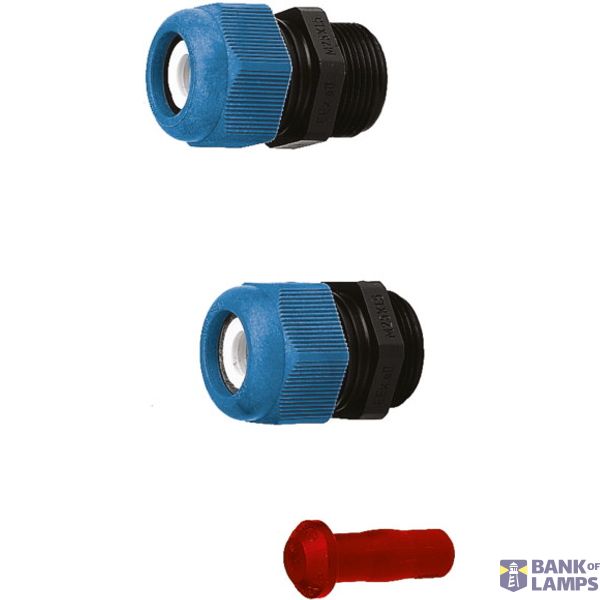

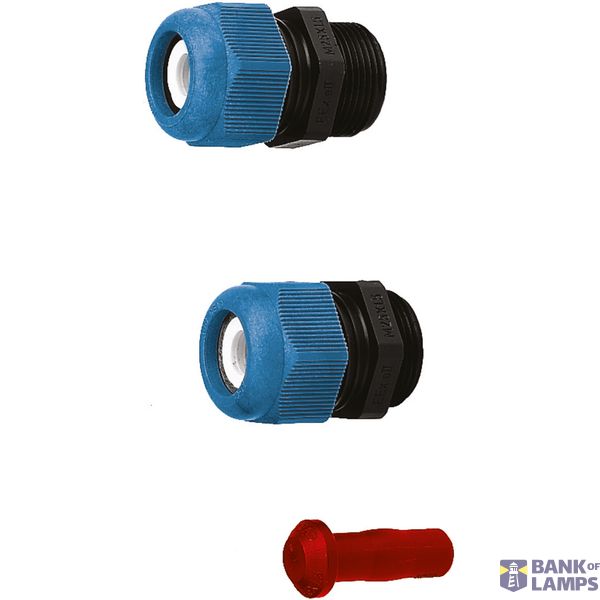

Ex-i Cable gland, Size: M20, Thread length: 13 mm, Material: Polyamide, Order unit: 20 pieces
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-i Cable gland, Size: M20, Thread length: 13 mm, Material: Polyamide, Order unit: 20 pieces |
| Brand | EATON |
| ETIM | EC000441 |
| Model | Straight |
| Thread length | 13 mm |
| Material quality | Polyamide (PA) |
| Thread type | Metric |
| Material | Plastic |
| Hexagon angular dimension | 26.4 mm |
| Suitable for cable diameter | 5.5-13 mm |
| Degree of protection (IP) | IP66 |
| Nominal thread size inch/gas pipe thread | Other |
| Nominal thread size metric/PG | 20 |
Packing details
| Packing level 1 | 4250217404085 |
| Packing level 2 | 4250217404085 |
Other Technical data
| Colour | Blue |
| Halogen free | Yes |
| Shock resistant | Yes |
| RAL-number | 5.015 |
| Surface protection | Untreated |
| Bend radius protection/trumpet flare | No |
| With strain relief | No |
| Screened | No |
| EMC-version | No |
| Glass-fibre reinforced | No |
| Type of sealing | Sealing ring |
| Operating temperature | -40-70 °C |
| Pitch thread | 1.5 mm |
| Explosion-tested version | Yes |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | No |
| Separable screw gland | No |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| For armoured cable | No |
| Snapping in opening | No |
| Wrench width | 24 mm |
Description
Ex-i Cable gland; Size: M20; Degree of protection: IP66 / (IP68 bis 0.1bar);Permissible ambient temperature: -20 °C up to +70 °C;Clamping range: 5,5mm up to 13mm;Thread length: 13mm; Material: Polyamide; Color: Blue;Order unit: 20 pieces
