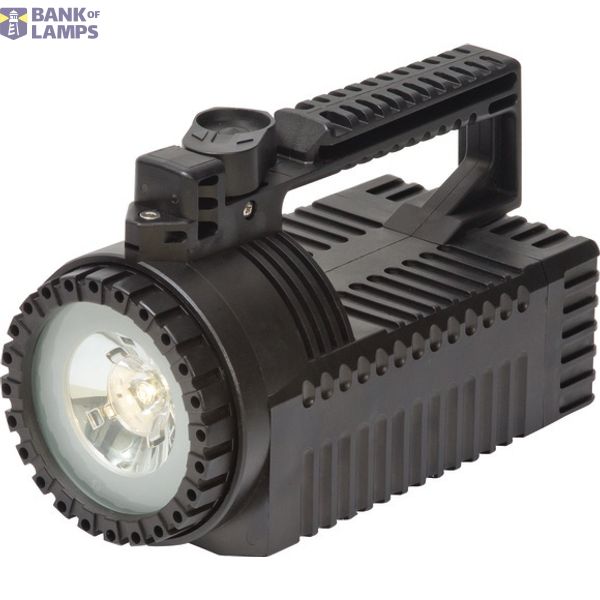

Ex-Handlamp, Variant: HE 9 Basic LED
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-Handlamp, Variant: HE 9 Basic LED |
| Brand | EATON |
| ETIM | EC000773 |
| Width | 97 mm |
| Length | 196 mm |
| Height/depth | 126 mm |
| Degree of protection (IP) | IP65 |
| Lamp wattage main lamp | 3 W |
Packing details
| Packing level 1 | 4250959924513 |
Other Technical data
| Colour housing | Black |
| Diameter | 71 mm |
| Rechargeable | Yes |
| Housing material | Plastic |
| Temperature class according to directive 94/9/EC | T4 |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Blinking light function main lamp | No |
| Blinking light function secondary lamp | No |
| Main lamp | LED not exchangeable |
| Auxiliary lamp | Other |
| For Ex-Zone dust | None |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Energy efficiency class of the provided exchangeable built-in lamp | A |
| Highest energy efficiency class of the exchangeable lamp | A |
| Lowest energy efficiency class of the exchangeable lamp | A |
Description
Ex-Hand lamp; Variant: HE 9 Basic LED; Lamp: 3W LED; Lumen: 92 lm; Protection class: III; Battery: replaceable (included); Operating time: Up to 8 hours; Enclosure material: Polyamide; Enclosure color: Black; Switch position: zmain light - off - main lightz; Light range: 25 m; Light cone diameter: 490 cm; Deep discharge protection and overcharge protection
