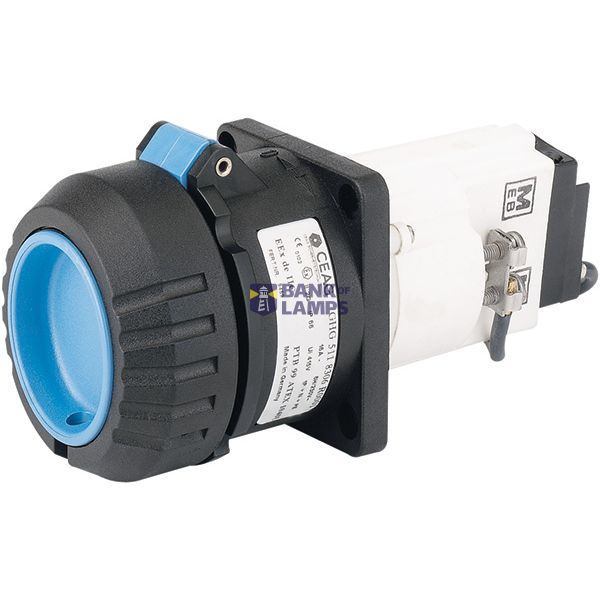

Ex-Flange socket, for zone 1/21, 16A-3Pol-6h / 250 V image 3

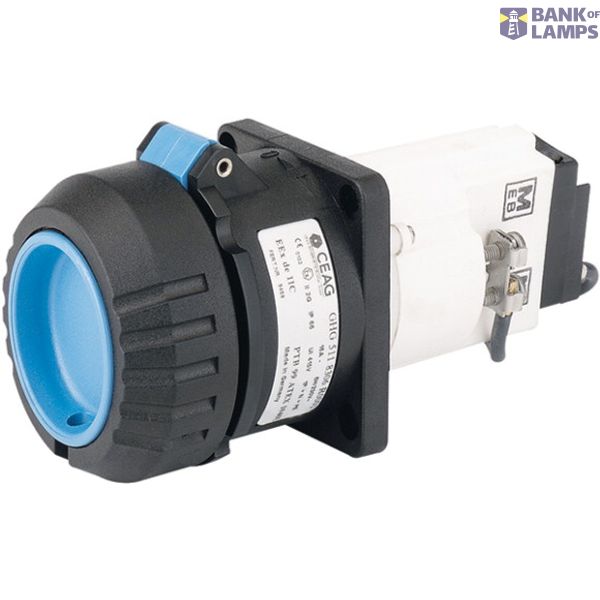

Ex-Flange socket, for zone 1/21, 16A-3Pol-6h / 250 V image 4

Ex-Flange socket, for zone 1/21, 16A-3Pol-6h / 250 V

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Flange socket, for zone 1/21, 16A-3Pol-6h / 250 V
Brand	EATON
ETIM	EC000016
Nominal current	16 A
Model	Base unit and cover
Switch	Mechanical locking
Ex-class	IIC
Number of poles	3
Housing material	Plastic
Surface treatment contacts	Untreated
Mounting direction	Horizontal/vertical
Contact material	Other
For Ex-zone gas	1, 2
Clock hour position	6 h
Identification colour	Blue
Voltage according to EN 60309-2	230 V (50+60 Hz) blue
For Ex-Zone dust	21, 22

Packing details

Packing level 1

4250217426940

Description

Ex-Flange socket 16A-3P-6H/250V;Enclosurematerial: Polyamide;Voltage: 415 V AC;Frequency: up to 400 Hz;Rated current: 16 A;Rated making / Rated breaking capacity AC3 accd. EN 60947-3: Ue 250 V / Ie 16 A;Marking according to 2014/34/EU: Ex II 2 G Ex db eb IIC / Ex II 2 D Ex tb IIIC Db;EC type examination certificate: Coupler: BVS 15 ATEX E 101 U;Permissible ambient temperature: -20 °C up to +55 °C;Dimensions (L x B x H): 157 x 65 x 65 mm;Weight: 0.4 kg;Protection class: I;Degree of protection according to EN 60529: IP66
