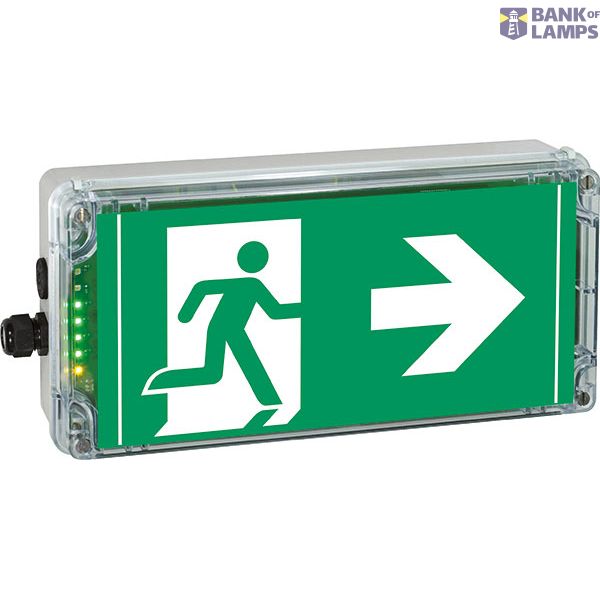

Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock image 1

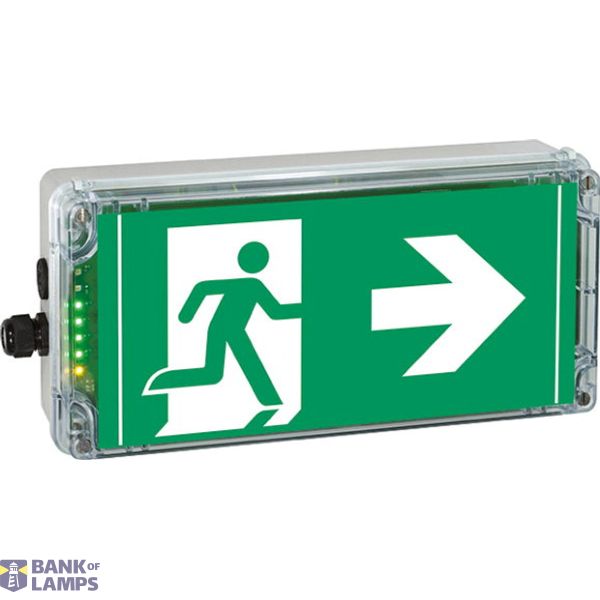

Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock image 2
Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock image 3
Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock image 4
Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock thumbnail 1
Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock thumbnail 2
Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock thumbnail 3
Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock thumbnail 4
EATON

Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 2/22, Pictogram: DIN ISO 7010, Arrow: 3 Clock
Brand EATON
ETIM EC000981
Width 356 mm
Colour rendering index CRI 70-79
Length 356 mm
Height/depth 76 mm
Lamp type LED not exchangeable
Impact strength IK10
Nominal voltage 110-277 V
Degree of protection (IP) IP66
Colour temperature 3000-6500 K
Max. system power 10 W
Rated luminous flux according to IEC 62722-2-1 185 lm

Packing details

Packing level 1 4250959910912

Other Technical data

Mounting method Surface mounting
Protection class I
Conductor cross section 2.5 mm²
Connection type Other
Voltage type AC/DC
Power supply system Peripheral
Type of control gear LED operating device current-controlled
Built-in width 0 mm
Built-in diameter 0 mm
Suitable for labelling type Other
Type of indicator Single-sided
Number of poles 3
Housing material Plastic
Wiring system Continuous circuit/emergency circuit
Built-in length 0 mm
For Ex-zone gas 2
With light source Yes
Monitoring equipment None
For Ex-Zone dust 22
Luminous flux at emergency operation 185 lm
Recognition distance 25 m
Colour of light White
Constant light output (CLO) No
Type of wiring Suitable for through wiring
Rated life time L70/B50 at 25 °C 60 h
Energy efficiency class of the built-in lamp Other
Energy efficiency class of the provided exchangeable built-in lamp E
Highest energy efficiency class of the exchangeable lamp E
Lowest energy efficiency class of the exchangeable lamp E
Nominal operation time 60000 h
Exchangeable control gear Yes
Built-in height/depth 0 mm
Power factor 0.95

Description

Ex-self-contained escape sign luminaires for Zone 2/22Exit 2 N for zone 2/22; Arrow 3h (accd. to ISO 7010); 1x M20 metal thread with threaded plug; 1x M20 metal thread with dust cap
