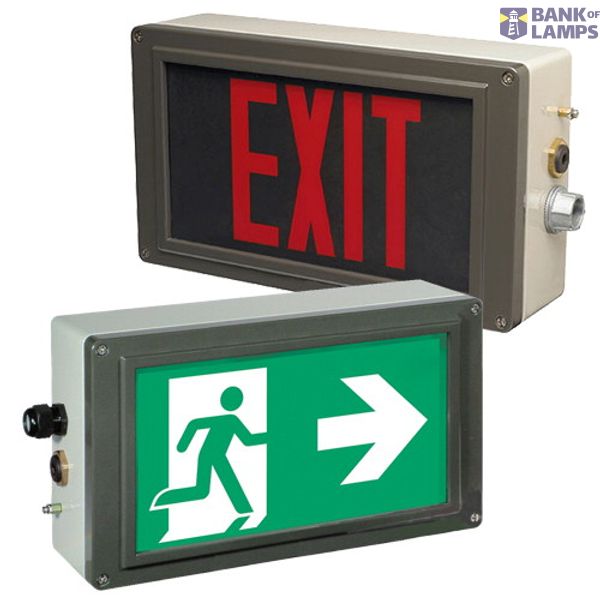

Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland image 1
Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland image 2

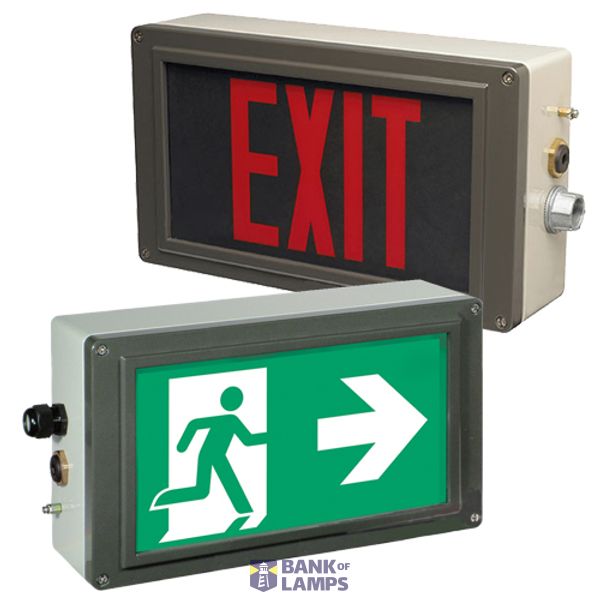

Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland image 3
Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland image 4
Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland thumbnail 1
Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland thumbnail 2
Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland thumbnail 3
Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland thumbnail 4
EATON

Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-escape sign luminaires EXIT 24V for zone 1/21, Text side by side: EXIT & EXIT (arabic), NPT-Gland
Brand EATON
ETIM EC000981
Width 175 mm
Colour rendering index CRI 70-79
Length 356 mm
Height/depth 76 mm
Lamp type LED not exchangeable
Impact strength IK10
Nominal voltage 110-277 V
Degree of protection (IP) IP66
Colour temperature 3000-6500 K
Max. system power 10 W
Rated luminous flux according to IEC 62722-2-1 185 lm

Packing details

Packing level 1 4251510725501

Other Technical data

Mounting method Surface mounting
Protection class I
Conductor cross section 2.5 mm²
Connection type Screwed terminal
Voltage type AC/DC
Power supply system Central
Type of control gear Electronic transformer
Built-in width 0 mm
Built-in diameter 0 mm
Suitable for labelling type Other
Type of indicator Single-sided
Number of poles 3
Housing material Plastic
Wiring system Continuous circuit/emergency circuit
Built-in length 0 mm
For Ex-zone gas 1, 2
With light source Yes
Monitoring equipment None
For Ex-Zone dust 21, 22
Luminous flux at emergency operation 185 lm
Recognition distance 25 m
Colour of light White
Constant light output (CLO) No
Type of wiring Suitable for through wiring
Rated life time L70/B50 at 25 °C 60 h
Energy efficiency class of the built-in lamp A++, A+, A (LED)
Energy efficiency class of the provided exchangeable built-in lamp A
Highest energy efficiency class of the exchangeable lamp A
Lowest energy efficiency class of the exchangeable lamp A
Nominal operation time 60000 h
Exchangeable control gear Yes
Built-in height/depth 0 mm
Power factor 0.5

Description

Ex-escape sign luminaires EXIT 24V for zone 1/21; Text side by side: EXIT & EXIT (Arabic); Rated voltage: 12 V - 24 V DC (-15% / +20%); Protection class: I; Viewing distance: 25 m; Power: 6 W; Permissible ambient temperature: -20 °C till +50 °C (T5) / -20 °C till +40 °C (T6); Lamp: LED (White); Enclosure colour: Grey (RAL 7035); Enclosure material: Polycarbonate; Cable Entry: 1x adapter M20 to 3/4zNPT with 3/4z HDPE-Blind plug (Metal) & 1x M20 Blind plug (Plastic)
