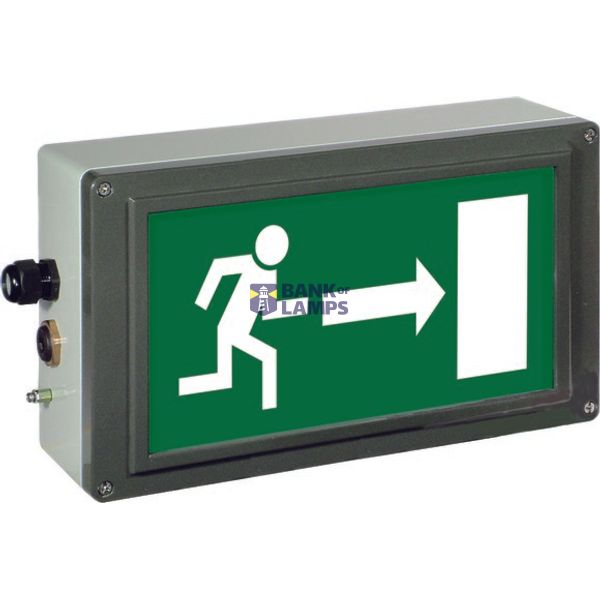

Ex-escape sign luminaires EX-LITE for zone 1/21, Pictogram: EN 1838, Arrow: 3 Clock
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-escape sign luminaires EX-LITE for zone 1/21, Pictogram: EN 1838, Arrow: 3 Clock |
| Brand | EATON |
| ETIM | EC000981 |
| Width | 356 mm |
| Colour rendering index CRI | 70-79 |
| Length | 356 mm |
| Height/depth | 76 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 110-277 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000-6500 K |
| Max. system power | 6 W |
| Rated luminous flux according to IEC 62722-2-1 | 185 lm |
Packing details
| Packing level 1 | 4250217408441 |
Other Technical data
| Mounting method | Surface mounting |
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Voltage type | AC/DC |
| Power supply system | Central |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Suitable for labelling type | Other |
| Type of indicator | Single-sided |
| Number of poles | 3 |
| Housing material | Aluminium |
| Wiring system | Continuous circuit/emergency circuit |
| Built-in length | 0 mm |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Monitoring equipment | None |
| For Ex-Zone dust | 21, 22 |
| Luminous flux at emergency operation | 185 lm |
| Recognition distance | 25 m |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 60 h |
| Energy efficiency class of the built-in lamp | Other |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Highest energy efficiency class of the exchangeable lamp | E |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Nominal operation time | 60000 h |
| Exchangeable control gear | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0.95 |
Description
Ex-escape sign luminaires EX-LITE for zone 1/21; Pictogram: EN 1838; Arrow: 3 Clock; Rated voltage: 110 V - 277 V AC / 110 V - 254 V AC 50 Hz / 60 Hz and 110 V - 250 V DC; Protection class: I; Viewing distance: 28 m; Power: 6 W; Permissible ambient temperature: -20 °C till +50 °C (T5) / -20 °C till +40 °C (T6); Lamp: LED (White); Enclosure colour: Grey (RAL 7035); Enclosure material: Light alloy; Cable Entry: 1x M25 Cable gland (Plastic) + 1x M25 Blind plug (Plastic)
