EATON

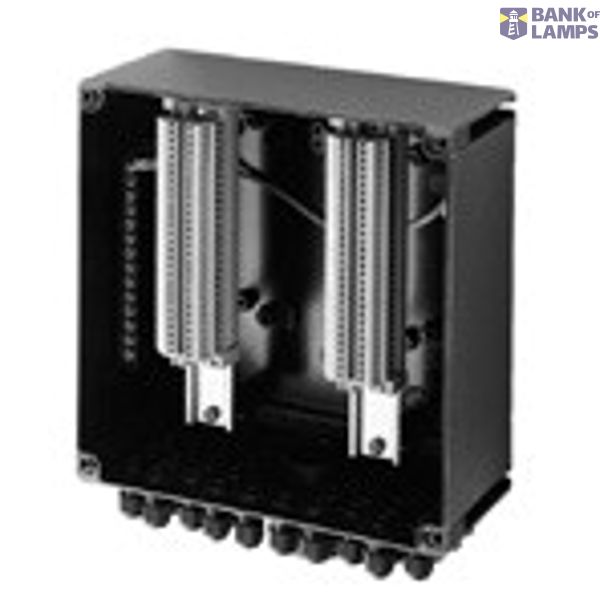

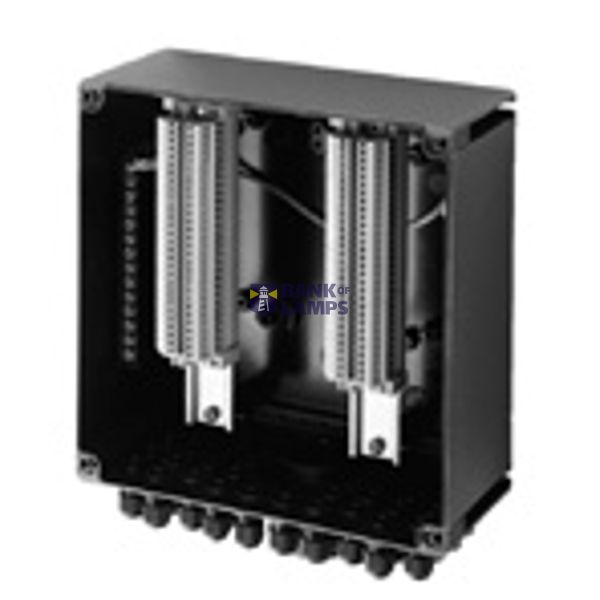

Ex-e terminal box GHG 745, Variant: zKK 32x2,5² 17x4² IEP SV 16M20 1M25 1M40z, Cable entry: 16x M20 + 1x M40

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-e terminal box GHG 745, Variant: zKK 32x2,5² 17x4² IEP SV 16M20 1M25 1M40z, Cable entry: 16x M20 + 1x M40
Brand EATON
ETIM EC002713
Mounting method Surface mounted (plaster)
Colour Black
Halogen free Yes
Material Plastic
Degree of protection (IP) IP66

Packing details

Packing level 1 4251510700843

Other Technical data

Width 271 mm
Depth 136 mm
Surface protection Untreated
Extension possible No
With transparent cover No
With cover Yes
Number of connection clamps 49
Rated insulation voltage Ui 690 V
Length 271 mm
Sealable No
Type of inlet Cable
Circuit integrity None
Operating temperature -20-40 °C
Number of inlets 17
Explosion-tested version Yes
Impact strength > IK10
Cover attachment Screwed
Max. conductor cross section 4 mm²
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Material plate thickness cabinet 4 mm
Degree of protection (NEMA) Other

Description

Ex-e terminal box GHG 745 for zone 1/21; Variant: zKK 32x2,5² 17x4² IEP SV 16M20 1M25 1M40z; Rated Voltage: 690V AC; Rated Current: 16A;Terminals: 32x 2,5mm² Terminals + 17x 4mm² Terminals; Degree of Protection: IP66; Protection class: I; Permissible ambient temperature: -20°C up to +40°C; Enclosure colour: Black; Enclosure material: Polyamide;Padlocking facility: None; Cable entry: 16x M20 Cable gland (Plastic) + 1x M40 Cable gland (Plastic)
