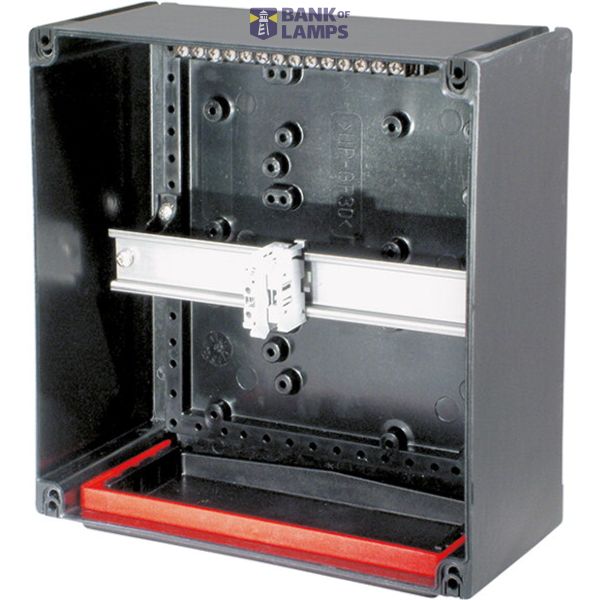

Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20 image 1
Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20 image 2
Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20 image 3
Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20 image 4
Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20 thumbnail 1
Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20 thumbnail 2
Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20 thumbnail 3
Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20 thumbnail 4
EATON

Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-e Terminal box for zone 1/21, Variant: GHG745 02, Terminalpoints: 20x 4mm² PE + 1x 16mm² PE, Cable entry: 21x M20
Brand EATON
ETIM EC002713
Mounting method Surface mounted (plaster)
Colour Black
Halogen free Yes
Material Plastic
Degree of protection (IP) IP66

Packing details

Packing level 1 4250217471919

Other Technical data

Width 271 mm
Depth 136 mm
Surface protection Untreated
Extension possible No
With transparent cover No
With cover Yes
Number of connection clamps 21
Rated insulation voltage Ui 690 V
Length 271 mm
Sealable No
Type of inlet Cable
Circuit integrity None
Operating temperature -20-40 °C
Number of inlets 21
Explosion-tested version Yes
Impact strength > IK10
Cover attachment Screwed
Max. conductor cross section 6 mm²
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Material plate thickness cabinet 4 mm
Degree of protection (NEMA) Other

Description

Ex-e Terminal box for zone 1/21; Variant: GHG745 02 zEx-e KLK 20x4²WPE, 1x16²PE; 21M20z; Terminalpoints: 20x 4mm² PE + 1x 16mm² PE; Enclosure material: Polyamide;Cable entry: 21x M20 Cable gland (Plastic) with 21x M20 Blanking plug (Plastic)
