EATON

Ex-e Terminal box for zone 1/21, Variant: GHG731 11, Cabel entry: Undrilled Enclosure

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-e Terminal box for zone 1/21, Variant: GHG731 11, Cabel entry: Undrilled Enclosure
Brand EATON
ETIM EC002713
Mounting method Surface mounted (plaster)
Colour Black
Halogen free Yes
Material Plastic
Degree of protection (IP) IP66

Packing details

Packing level 1 4250217405341

Other Technical data

Width 120 mm
Depth 95 mm
Surface protection Untreated
Extension possible No
With transparent cover No
With cover Yes
Number of connection clamps 1
Rated insulation voltage Ui 690 V
Length 140 mm
Sealable No
Type of inlet Other
Circuit integrity None
Operating temperature -20-40 °C
Number of inlets 0
Explosion-tested version Yes
Impact strength IK08
Cover attachment Screwed
Max. conductor cross section 2.5 mm²
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Material plate thickness cabinet 3 mm
Degree of protection (NEMA) Other

Description

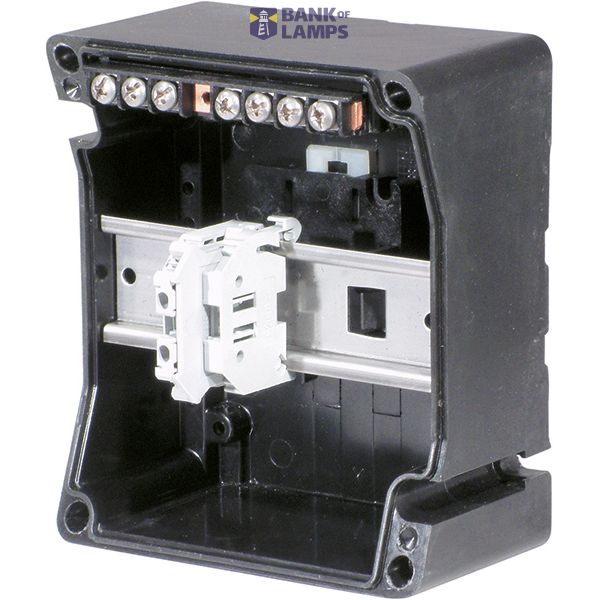

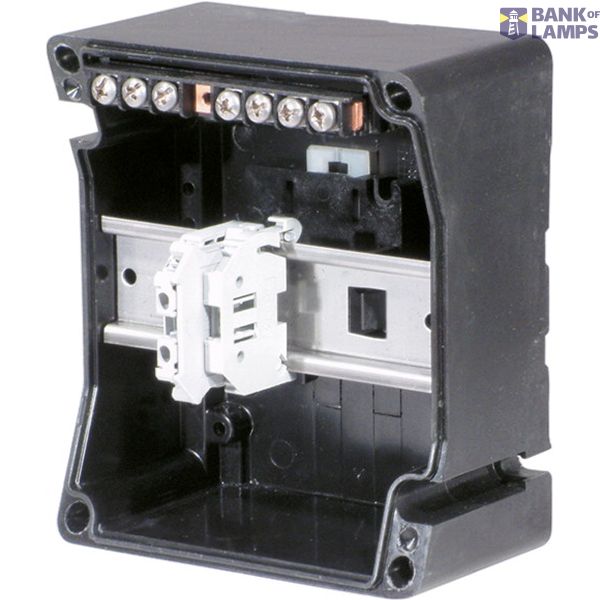

Ex-e Terminal box for Zone 1/21;Variant: GHG 731 11 zKLEMMENKASTEN GHG73111z; Terminalpoints: 1x 2,5mm² and PE-Rail; Enclosure material: Polyamide;Cable entry: Undrilled enclosure
