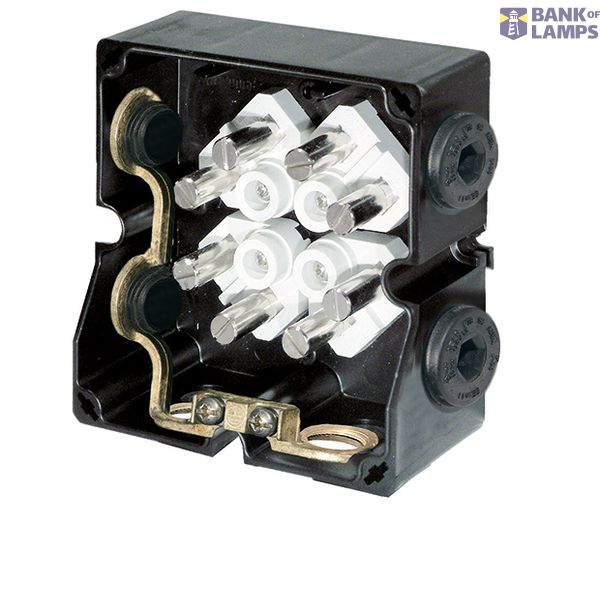

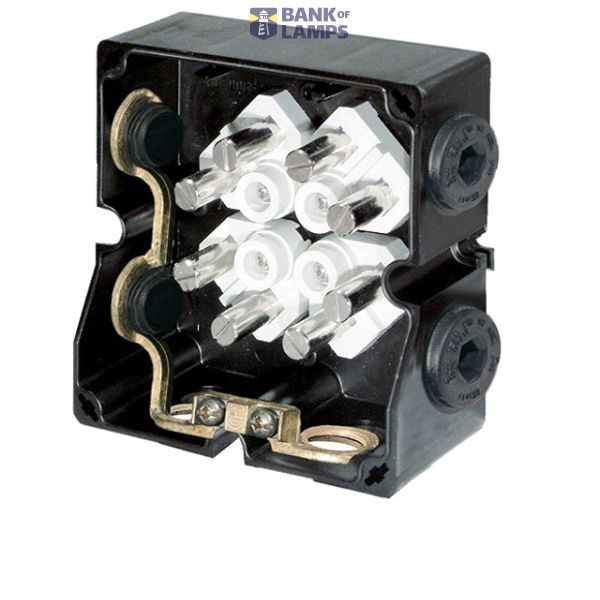

Ex-e Junction Box for zone 1/21, Variant: GHG791 02, Terminalpoints: 6x 4mm² + 2x 4mm² PE, Cable entry: 6x M25
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-e Junction Box for zone 1/21, Variant: GHG791 02, Terminalpoints: 6x 4mm² + 2x 4mm² PE, Cable entry: 6x M25 |
| Brand | EATON |
| ETIM | EC002713 |
| Mounting method | Surface mounted (plaster) |
| Colour | Black |
| Halogen free | Yes |
| Material | Plastic |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 4250217438004 |
Other Technical data
| Width | 113.5 mm |
| Depth | 73.5 mm |
| Surface protection | Untreated |
| Extension possible | No |
| With transparent cover | No |
| With cover | Yes |
| Number of connection clamps | 6 |
| Rated insulation voltage Ui | 690 V |
| Length | 117.5 mm |
| Sealable | No |
| Type of inlet | Other |
| Circuit integrity | None |
| Operating temperature | -20-40 °C |
| Number of inlets | 6 |
| Explosion-tested version | Yes |
| Impact strength | > IK10 |
| Cover attachment | Screwed |
| Max. conductor cross section | 4 mm² |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Material plate thickness cabinet | 3 mm |
| Degree of protection (NEMA) | 4X |
Description
Ex-e Junction box for zone 1/21; Variant: GHG791 02 zEAZK96 GR2 6XM25 6X4QMM+PE Ez; Terminalpoints: 6x 4mm² Terminals and 2x 4mm² PE-Terminal; Enclosure material: Polyamide; Enclosure color: Black; Cable entry: 6x M25 Pressure screw (Plastic)
