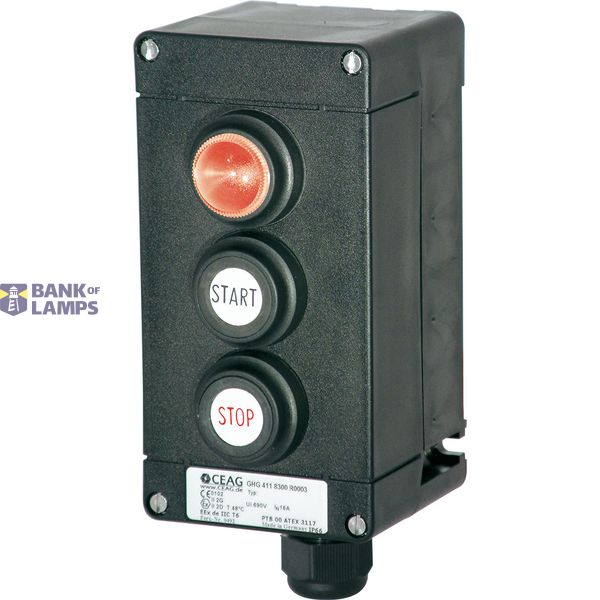

Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20 image 1

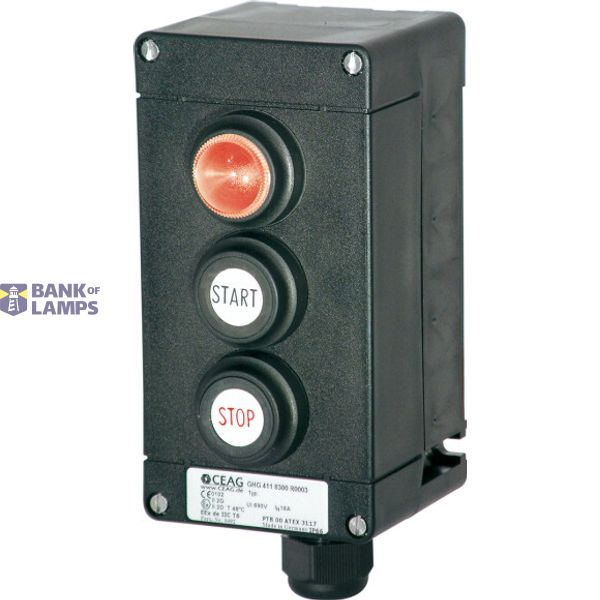

Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20 image 2
Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20 image 3
Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20 image 4
Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20 thumbnail 1
Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20 thumbnail 2
Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20 thumbnail 3
Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20 thumbnail 4
EATON

Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-e control unit GHG 411 83 for zone 1/21, Variant: zP413/15-02/15-03/71-01/00-20z, Cable entry: 1x M32 + 1x M20
Brand EATON
ETIM EC000225
Number of command positions 3
Suitable for emergency stop No
Number of indicator lights 1
Number of push buttons 2
Number of selector switches 0
Number of key switches 0
Number of mushroom-shaped push-buttons 0

Packing details

Packing level 1 4250217402760

Other Technical data

Colour housing cover Black
Housing material Plastic
Rated control supply voltage at AC 50 Hz 12-250 V
Rated control supply voltage at AC 60 Hz 12-250 V
Rated control supply voltage at DC 12-220 V
Degree of protection (IP) IP66
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 2
Number of contacts as change-over contact 0
Degree of protection (NEMA) Other

Description

Ex-e control unit GHG 411 83 for zone 1/21; Variant: zP413/15-02/15-03/71-01/00-20z, 2x Push button with z0z in white/red and z1z in white/black + 1x Signal lamp with coloured lens covers: zwhite, red, green yellowz; Rated Voltage: 690V AC; Rated Current: 16A; Frequency: 50/60Hz; Auxillary contacts each Push button: 1x NO + 1NC; Terminals: 2x 2,5mm² each contact; Degree of Protection: IP66; Protection class: I; Permissible ambient temperature: -20°C up to +40°C; Enclosure colour: Black; Enclosure material: Polyamide; Padlocking facility: None; Cable Entry: 1x M32 Cable gland (Plastic) + 1x M20 Cable gland (Plastic)
