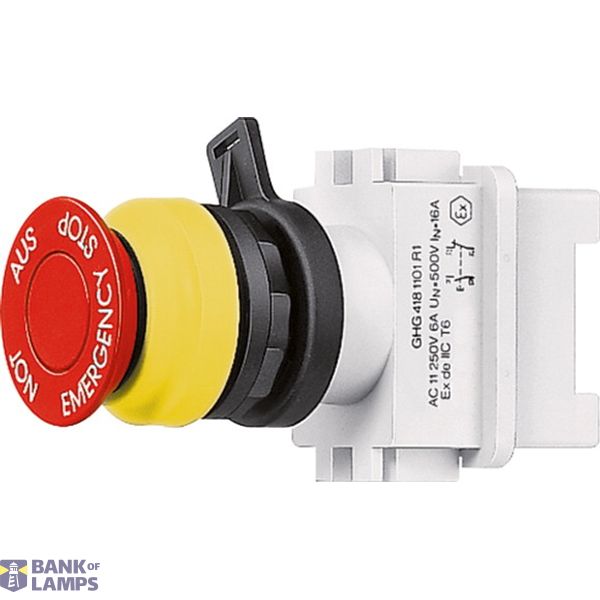

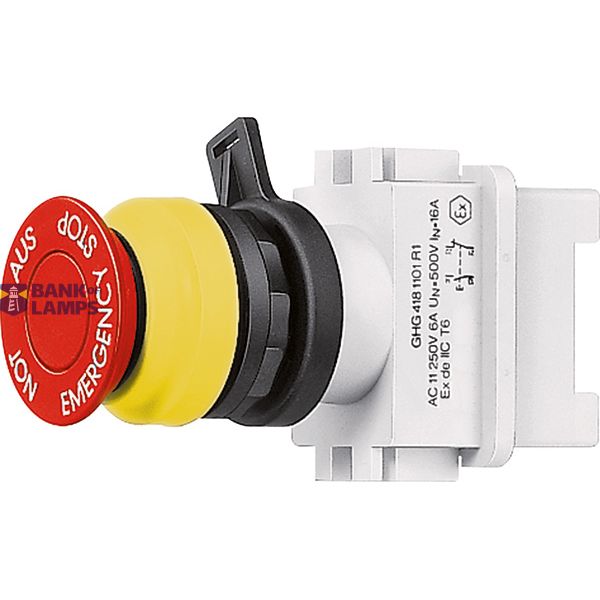

Ex-e Control station GHG418 81 for zone 1/21, Variant: zSCHLAGTASTER ER 1S+1OE NOT-AUS M VERz
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-e Control station GHG418 81 for zone 1/21, Variant: zSCHLAGTASTER ER 1S+1OE NOT-AUS M VERz |
| Brand | EATON |
| ETIM | EC001028 |
| Colour button | Red |
| Number of command positions | 1 |
| Type of button | Mushroom |
| Degree of protection (IP) | IP65 |
Packing details
| Packing level 1 | 4250217426445 |
Other Technical data
| Hole diameter | 31.5 mm |
| Suitable for illumination | No |
| Spring-return | No |
| Colour front ring | Black |
| Type of electric connection | Screw connection |
| Width opening | 32.7 mm |
| Height opening | 32.7 mm |
| Material front ring | Plastic |
| With front ring | Yes |
| Construction type lens | Round |
| Supply voltage lamp | 0 V |
| Switching function latching | Yes |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Description
Ex-e Control station GHG418 81 for zone 1/21; Variant: zSCHLAGTASTER ER 1S+1OE NOT-AUS M VERz; Circuit: 1NO & 1NC; Insert labels: z0; I; START; STOPz; Protection class: I; Rated current: 16 A; Voltage: 690 V AC; Enclosure material: Polyamide; Enclosure color: Black; Cable entry: 1x M25 Cable gland (Plastic)
