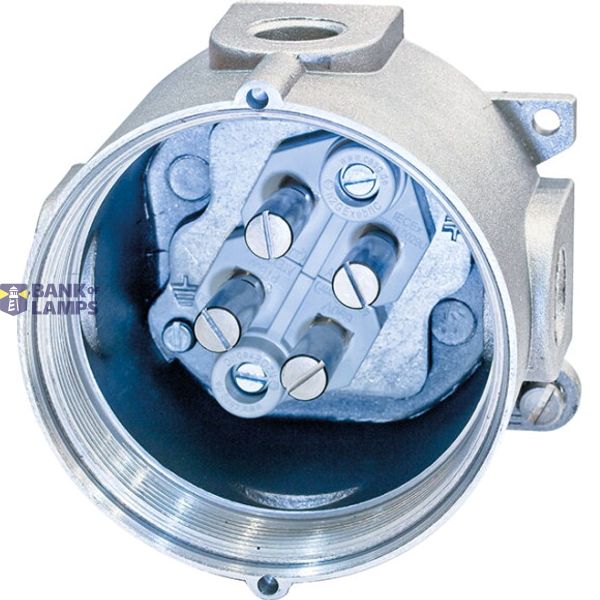

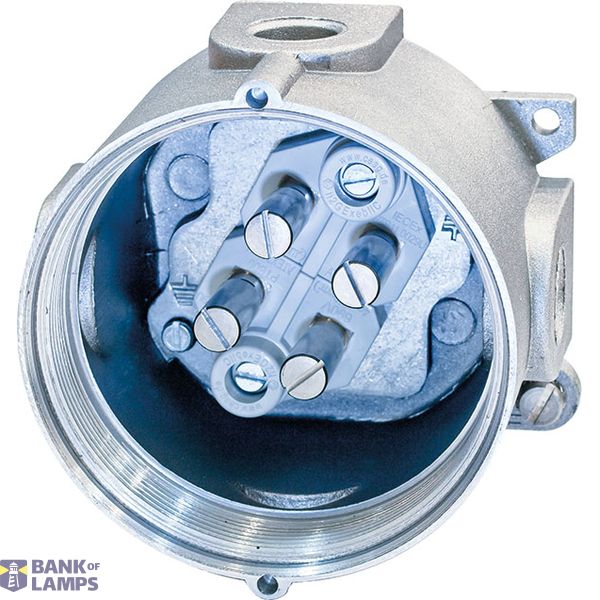

Ex-d Terminal box, Variant: C30 X1, Cable entry: 4x 1/2z NPT
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-d Terminal box, Variant: C30 X1, Cable entry: 4x 1/2z NPT |
| Brand | EATON |
| ETIM | EC002713 |
| Mounting method | Surface mounted (plaster) |
| Colour | Other |
| Halogen free | Yes |
| Material | Aluminium |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 8435156901581 |
Other Technical data
| Width | 98 mm |
| Depth | 90 mm |
| Surface protection | Untreated |
| Extension possible | No |
| With transparent cover | No |
| With cover | Yes |
| Number of connection clamps | 4 |
| Rated insulation voltage Ui | 690 V |
| Length | 95 mm |
| Sealable | No |
| Type of inlet | Other |
| Circuit integrity | None |
| Operating temperature | -20-55 °C |
| Number of inlets | 3 |
| Explosion-tested version | Yes |
| Impact strength | IK08 |
| Cover attachment | Screwed |
| Max. conductor cross section | 6 mm² |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Material plate thickness cabinet | 3 mm |
| Degree of protection (NEMA) | Other |
Description
Ex-d Terminal box;Variant: C30 X1;Operation voltage: 690V AC;Rated current: up to 40A;Protection class: I;Degree of protection: IP67;Permissible ambient temperature: -20°C up to +55°C;Enclosure material: Light alloy;Enclosure color: natural;Cable entry: 4x 1/2z NPT
