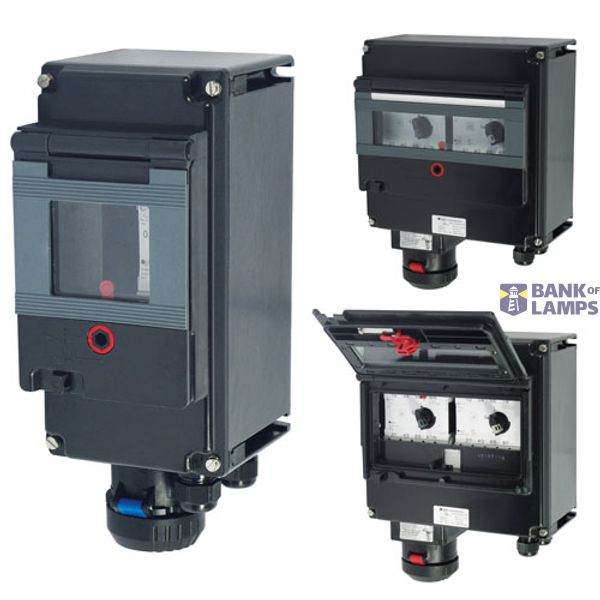

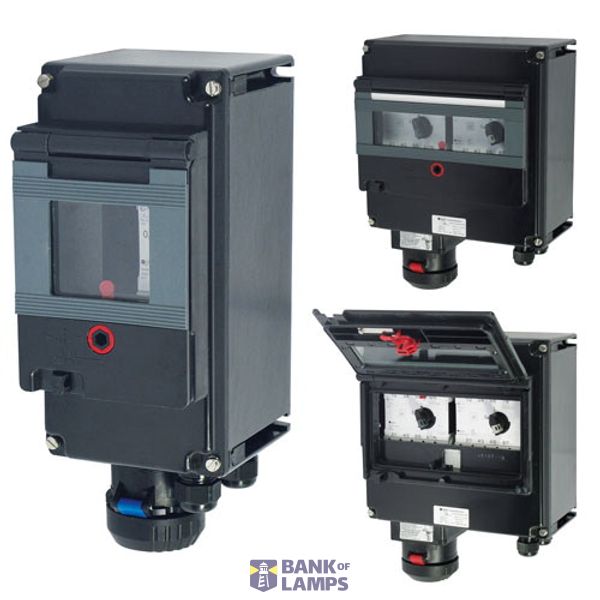

EX-D RCD/MCB DS201 K25/0,03A + R1561
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EX-D RCD/MCB DS201 K25/0,03A + R1561 |
| Brand | EATON |
| ETIM | EC000003 |
| Voltage type | AC |
| Rated current | 25 A |
| Rated voltage | 230 V |
| Rated insulation voltage Ui | 500 V |
| Number of poles | 2 |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Selective protection | No |
| Short-circuit breaking capacity (Icw) | 10 kA |
| Surge current capacity | 0 kA |
| Short-time delayed tripping | No |
| Frequency | 50/60 Hz |
| Rated impulse withstand voltage Uimp | 4 kV |
Packing details
| Packing level 1 | 4251510741907 |
Other Technical data
| Mounting method | DIN rail |
| Built-in depth | 132 mm |
| Pollution degree | 2 |
| Width in number of modular spacings | 4 |
| Explosion-proof | No |
| Degree of protection (IP) | IP2X |
| Connectable conductor cross section solid-core | 16 mm² |
| Connectable conductor cross section multi-wired | 16 mm² |
| With interlocking device | Yes |
| Ambient temperature during operating | -25-55 °C |
| Additional equipment possible | No |
Description
EX-D RCD/MCB DS201 25/0,03A + R1561
