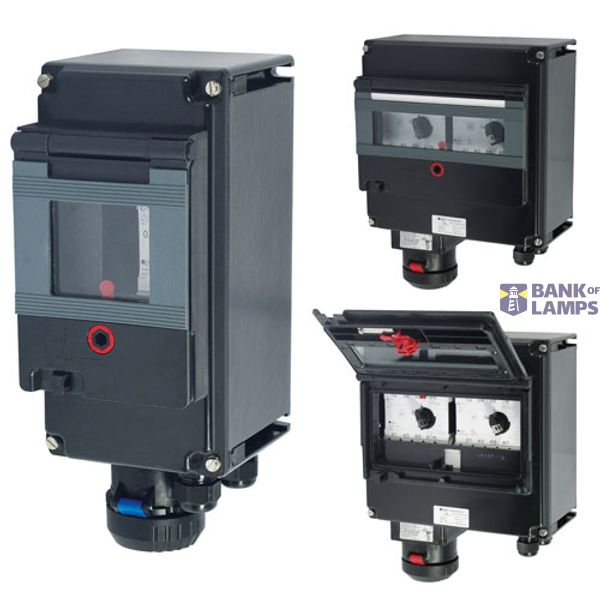

Ex-d Miniature circuit breaker, Variant: FAZ-C2/2 image 1

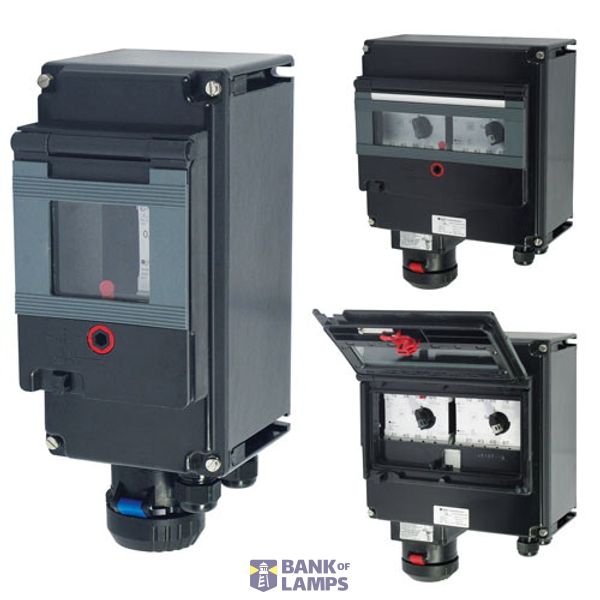

Ex-d Miniature circuit breaker, Variant: FAZ-C2/2 image 2

Ex-d Miniature circuit breaker, Variant: FAZ-C2/2 image 3

Ex-d Miniature circuit breaker, Variant: FAZ-C2/2

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-d Miniature circuit breaker, Variant: FAZ-C2/2
Brand	EATON
ETIM	EC000042
Rated current	2 A
Rated voltage	400 V
Release characteristic	C
Width in number of modular spacings	3
Number of poles (total)	2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10 kA

Packing details

Packing level 1

4251510742775

Other Technical data

Voltage type	AC/DC
Built-in depth	132 mm
Frequency	50-60 Hz
Rated insulation voltage Ui	440 V
Current limiting class	3
Over voltage category	3
Pollution degree	2
Explosion-proof	Yes
Degree of protection (IP)	IP2X
Number of protected poles	2
Concurrently switching neutral conductor	No
Connectable conductor cross section solid-core	0 mm²
Connectable conductor cross section multi-wired	1.5-16 mm²
Ambient temperature during operating	-20-50 °C
Flush-mounted installation	No
Additional equipment possible	No
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	10 kA
Rated impulse withstand voltage Uimp	4 kV

Description

Ex-d Miniature circuit breaker; Variant: FAZ-C2/2; Tripping Characteristic: C; Voltage: 400 V; Current: 2 A; Frequency: 50 Hz / 60 Hz; Number of poles: 2; Auxillary contacts: 0; Signal contacts: 0; Connection terminals: 1x 1,5mm² up to 1x 16m² or 2x 1,5mm² up to 2x 6mm², with Cable lug 2x 25mm²; Padlocking facility in OFF postion: Yes; Permissible ambient temperature: -45°C up to +50°C; Powerloss per pole: 1,4 W; Backup fuse (maximum): 125 A; Enclosure material: Polyamide
