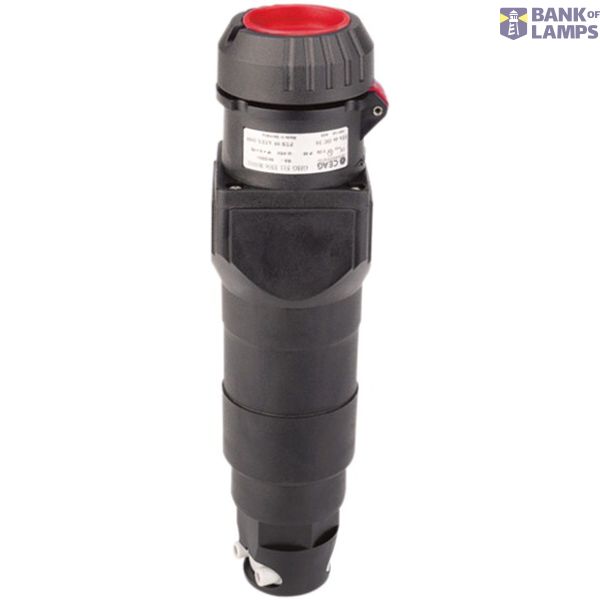

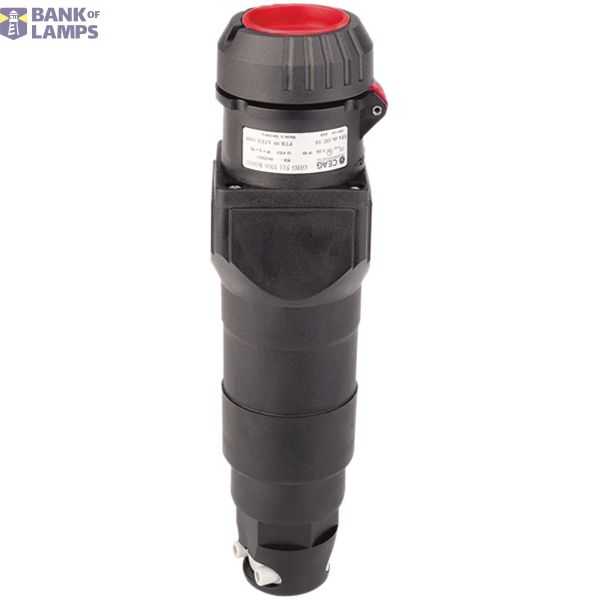

Ex-Coupler for zone 1/21, Variant: 16A-5P-6H
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-Coupler for zone 1/21, Variant: 16A-5P-6H |
| Brand | EATON |
| ETIM | EC000017 |
| Mains voltage | 415 V |
| Ex-class | IIC |
| Number of poles | 5 |
| Housing material | Plastic |
| Surface treatment contacts | Untreated |
| Contact material | Other |
| For Ex-zone gas | 1, 2 |
| Voltage according to EN 60309-2 | 400-440 V (50+60 Hz) red |
| For Ex-Zone dust | 21, 22 |
Packing details
| Packing level 1 | 4250217424991 |
Other Technical data
| Nominal current | 16 A |
| Model | Coupling |
| Cable entry | Straight |
| Protective contact | Yes |
| Clock hour position | 6 h |
| Identification colour | Red |
Description
Ex-Coupler for zone 1/21; Variant: 16A-5P-6H; Number of poles: 5-pole;Voltage: 690V AC;Frequency: up to 400Hz;Rated current: 16 A;Permissible ambient temperature: -20 °C up to +55 °C;Dimensions (L x B x H): 279mm x 90mm x 90mm;Weight: 0,9kg;Protection class: I;Degree of protection: IP66Enclosure material: Polyamide;Enclosure color: Black; Cable entry: 12mm up to 21mm
