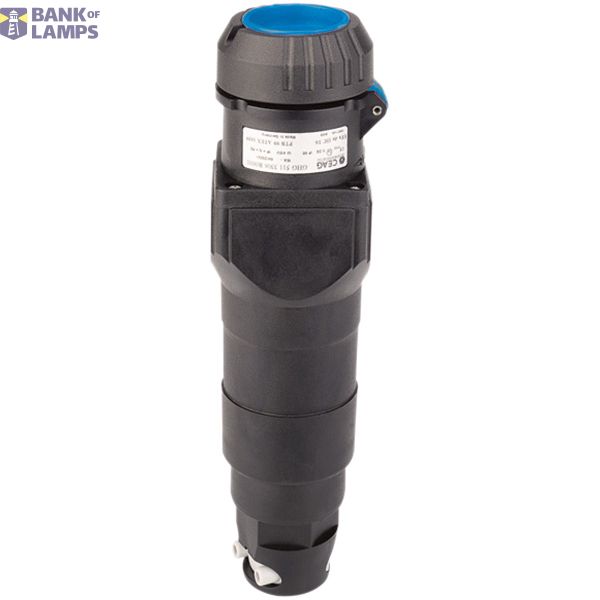

Ex-Coupler for zone 1/21, Variant: 16A-3P-6H image 2

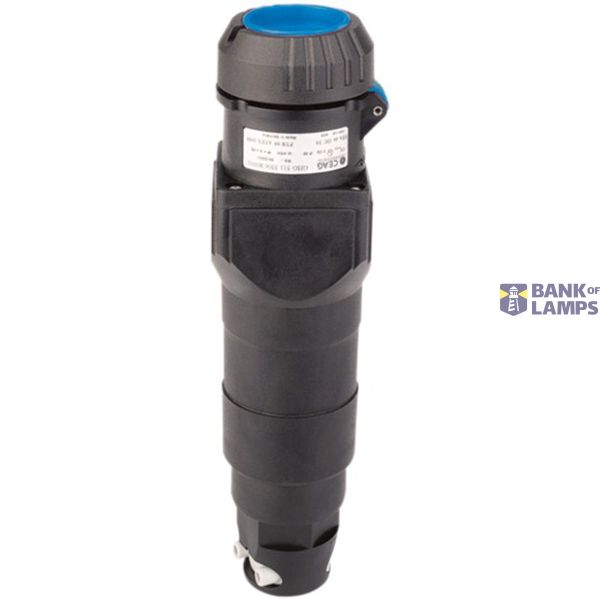

Ex-Coupler for zone 1/21, Variant: 16A-3P-6H image 3

Ex-Coupler for zone 1/21, Variant: 16A-3P-6H image 4

Ex-Coupler for zone 1/21, Variant: 16A-3P-6H

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Coupler for zone 1/21, Variant: 16A-3P-6H
Brand	EATON
ETIM	EC000017
Mains voltage	250 V
Ex-class	IIC
Number of poles	3
Housing material	Plastic
Surface treatment contacts	Untreated
Contact material	Other
For Ex-zone gas	1, 2
Voltage according to EN 60309-2	230 V (50+60 Hz) blue
For Ex-Zone dust	21, 22

Packing details

Packing level 1

4250217424946

Other Technical data

Nominal current	16 A
Model	Coupling
Cable entry	Straight
Protective contact	Yes
Clock hour position	6 h
Identification colour	Blue

Description

Ex-Coupler for zone 1/21; Variant: 16A-3P-6H; Number of poles: 3-pole;Voltage: 415 V AC;Frequency: up to 400 Hz;Rated current: 16 A;Permissible ambient temperature: -20 °C up to +55 °C;Dimensions (L x B x H): 263mm x 69mm x 71,5mm;Weight: 0,7 kg;Protection class: I;Degree of protection: IP66; Enclosure material: Polyamide;Enclosure color: Black; Cable entry: 8mm up to 19mm
