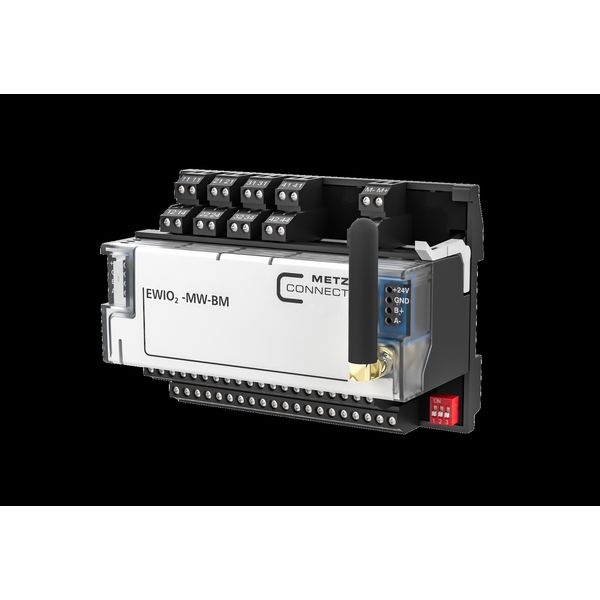

EWIO2-MW-BM M-Bus / WLAN / BACnet / Modbus

Name: EWIO2-MW-BM M-Bus / WLAN / BACnet / Modbus
Brand: METZ CONNECT
Price: 970.300 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

970,30 €

This price is valid until 24.12.25

EAN: 4251394629834

MPN: 110934

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	EWIO2-MW-BM M-Bus / WLAN / BACnet / Modbus
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8517 6200 00
Mounting method	DRA (DIN-rail adapter)
Model	Ethernet
Bus system KNX	No
With bus connection	Yes
Width in number of modular spacings	7
Other bus systems	Other
Radio frequent bidirectional	No

Packing details

Packing level 1

4251394629834, 4251394629834

Other Technical data

Colour	Grey
Surface protection	Untreated
Material quality	Other
Bus system radio frequent	No
Bus system Powernet	No
Material	Plastic
Bus system LON	No
With label area	No
Degree of protection (IP)	IP20
With LED indication	Yes
Transparent	No
Surface finishing	Matt
Bus system KNX radio	No
Min. depth of built-in installation box	60.81 mm

Description

The EWIO, 2-MW-BM is a powerful data logger for the energy consumption monitoring and energy monitoring in buildings, on machines, plants and systems. Two Ethernet ports with a Daisy Chain function for the further Data logger and a WLAN interface are available for the connection to the LAN oder WLAN network. In addition, the WLAN interface can be used as an access point for the configuration with a mobile device (e.g. smartphone, tablet, notebook). The EWIO2-MW-BM can be integrated into a Modbus TCP or BACnet/IP network to perform control tasks. The system is paramterised, configured ad commissioned through a platform-independent web browser. The M-Bus and Modbus RTU interfaces enable to read different meters: e.g. electricity, water, gas and heat. Optionally, the measured values can either be sent from the data base (push) or read out (pull) via mail (SSL) or FTP (SFTP), from a BACnet or Modbus controller. Simple functions and control tasks in building or industrial automation can be created and visualized via the graphic programming interface "Node-RED" integrated in the web interface and the numerous digital and analog I/Os. An integrated µSD memory card expands the range of functions of the EWIO2-MW-BM for save settings, data and applications.
