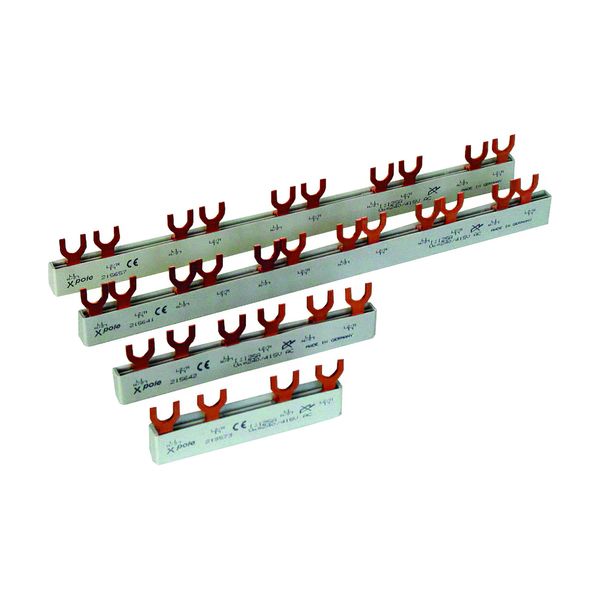

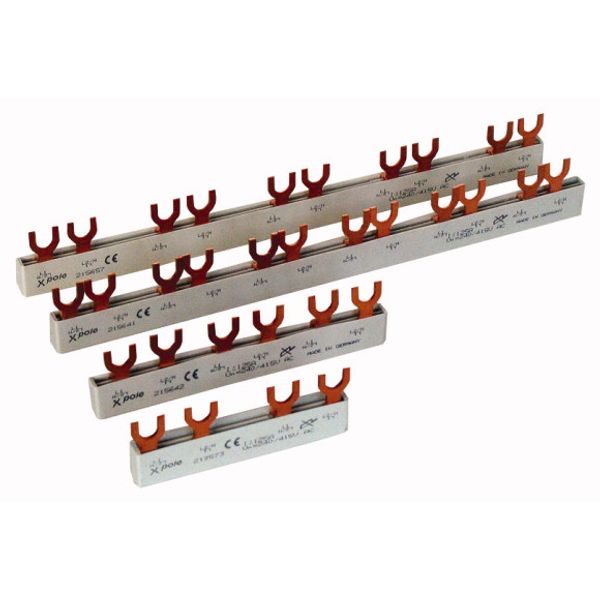

EVG-16/1PHAS/9MODUL/HI EV busbars 1Ph., 13HP, for auxiliary contact unit
Order only
Minimal order quantity: 40
Price (excl. VAT):
4,24 €
Subtotal: 169,60 €
MOQ: 40
EAN: 4015082914813
MPN: 291481
Package: 1
Box: 40
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | EVG-16/1PHAS/9MODUL/HI EV busbars 1Ph., 13HP, for auxiliary contact unit |
| Brand | EATON |
| Categories |
Busbar Systems and Accessories
|
| Country of origin | DE |
| Harmonized System Code | 8536 9095 00 |
| Insulated | Yes |
| Rated permanent current Iu | 80 A |
| Number of poles | 1 |
Packing details
| Packing level 1 | 4015082914813 |
| Packing level 2 | 9007912612087 |
| Packing level 3 | 9007912612094 |
Other Technical data
| Colour | Other |
| Number of phases | 1 |
| Cross section | 16 mm² |
| Length | 29 mm |
| Conditioned rated short-circuit current Iq | 25 kA |
| Width in number of modular spacings | 9 |
| Rated surge voltage | 4 kV |
| Type of electric connection | Fork |
| Rated short-time withstand current lcw | 0 kA |
| Suitable for devices with auxiliary switch | Yes |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 9 |
| Max. rated operation voltage Ue | 415 V |
| Module width | 0 mm |
| Can be cut to size | No |
Description
Busbars: flashovers are minimized Use of end caps not required Saves 30% of the assembly time
