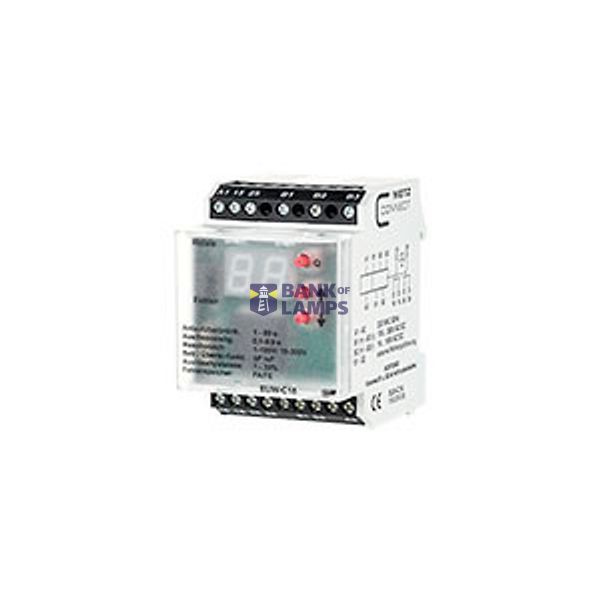

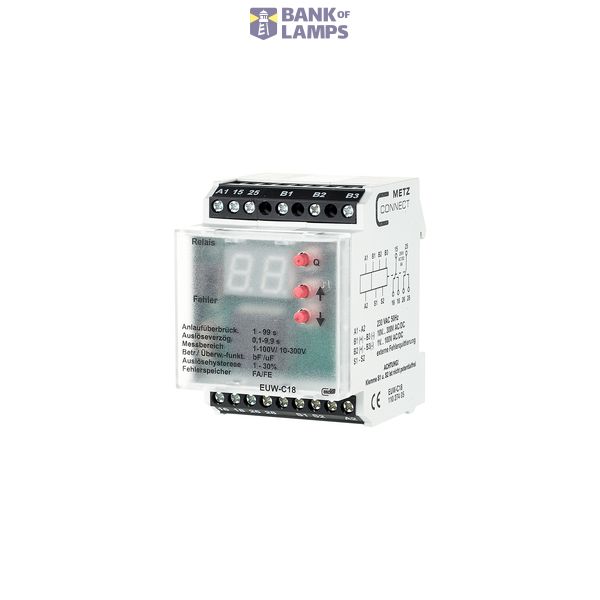

EUW-C18 230 V AC
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EUW-C18 230 V AC |
| Brand | METZ CONNECT |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9030 3900 00 |
| ETIM | EC001438 |
| Single-phase under voltage possible | Yes |
| Single-phase hysteresis possible | Yes |
| Three-phase hysteresis possible | No |
| Type of voltage measuring range | AC |
| Type of electric connection | Plug-in connection |
| Voltage measuring range 1 | 1-100 V |
| Min. adjustable delay-on energization time | 0.1 s |
| Number of contacts as normally open contact | 0 |
Packing details
| Packing level 1 | 4250184120995, 4250184120995 |
Other Technical data
| Width | 50 mm |
| Height | 68 mm |
| Depth | 65 mm |
| With detachable clamps | No |
| Three-phase under voltage possible | No |
| Single-phase over voltage possible | Yes |
| Three-phase over voltage possible | No |
| Contains function DC-under voltage | Yes |
| Contains function DC-over voltage | Yes |
| Contains function DC-voltage hysteresis | Yes |
| Voltage measuring range 2 | 10-300 V |
| Max. permitted delay-on energization time | 9.9 s |
| Max. permitted off-delay time | 9.9 s |
| Min. adjustable off-delay time | 0.1 s |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 2 |
Description
Monitoring of direct or alternating voltages in live systems. It is displayed whether the adjusted values are exceeded or not reached, and a switching process is triggered. The integrated 7-segment display indicates the sources of the fault. The voltage to be measured (AC or DC), two measuring ranges, an upper and a lower threshold value, a response delay and the fault memory (ON or OFF) can be adjusted manually on the device. Faults can be acknowledged directly on the device or by means of an external contact.Connection with screw type terminal blocks
