EC 25 BK - Europe connectors

Order only Minimal order quantity: 10

Price (excl. VAT):

16,92 €

This price is valid until 24.12.25

Subtotal: 169,20 € MOQ: 10

EAN: 4046356457880

MPN: 3240184

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	EC 25 BK - Europe connectors
Brand	Phoenix Contact
Categories	Terminal Block Accessories
Country of origin	AT
Harmonized System Code	8536 9010 00
Rated voltage	0 V
Drill hole distance centrically	0 mm
Rated current In	0 A
Explosion-tested version 'Ex e'	No

Packing details

Packing level 1

4046356457880

Other Technical data

Mounting method	Other
Colour	Black
Width	0 mm
Height	0 mm
Depth	0 mm
Number of poles	12
Number of clamp positions per pole	0
Closing plate required	Yes
Connectable conductor cross section solid-core	10 mm²
Connectable conductor cross section fine-strand without cable end sleeve	10-25 mm²
Connectable conductor cross section multi-wired	25 mm²

Description

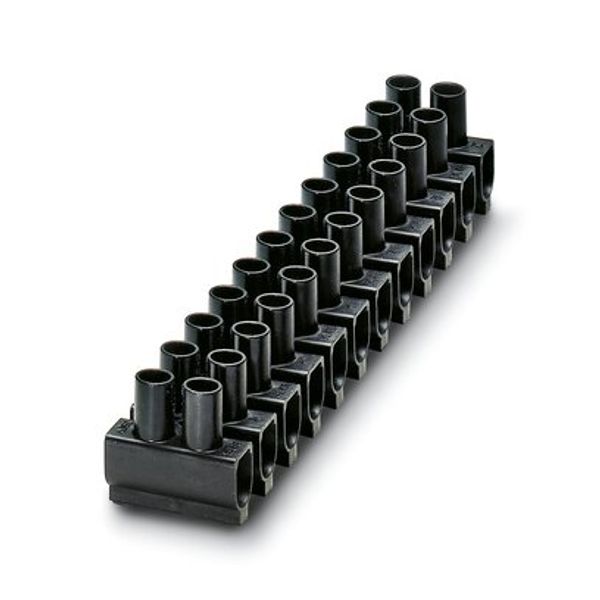

Europe connectors, nom. voltage: 750 V, nominal current: 101 A, connection method: Screw connection, Rated cross section: 25 mm², cross section: 10 mm² - 25 mm², mounting type: direct screw connection, color: black
