ETIMAT SP 3x1p E50

Name: ETIMAT SP 3x1p E50
Brand: ETI
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ETIMAT SP 3x1p E50
Brand	ETI
ETIM	EC001047
Mounting method	Busbar
Rated current	50 A
Rated voltage	400 V
Release characteristic	E
Number of poles	3
Rated switching capacity	25 kA

Packing details

Packing level 1

3838895531135, 3838895531135

Other Technical data

Frequency	50 Hz
Rated insulation voltage Ui	690 V
Pollution degree	3
Degree of protection (IP)	IP20
Concurrently switching neutral conductor	No

Description

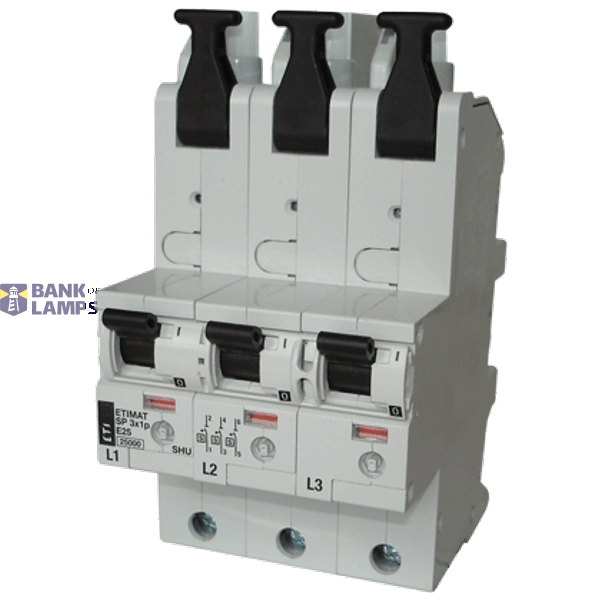

Miniature circuit breaker, ETIMAT SP 3x1P E50, No. Of poles 3, Catalogue Group ETIMAT SP, Rated current (A) 50, Tripping characteristic E, Short circuit capacity (kA) 25
