ETIMAT S 4p E40

Name: ETIMAT S 4p E40
Brand: ETI
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ETIMAT S 4p E40
Brand	ETI
ETIM	EC001047
Mounting method	DIN rail
Rated current	40 A
Rated voltage	400 V
Release characteristic	E
Number of poles	4
Rated switching capacity	25 kA

Packing details

Packing level 1

3838895530534, 3838895530534

Other Technical data

Frequency	50 Hz
Rated insulation voltage Ui	690 V
Pollution degree	3
Degree of protection (IP)	IP20
Concurrently switching neutral conductor	Yes

Description

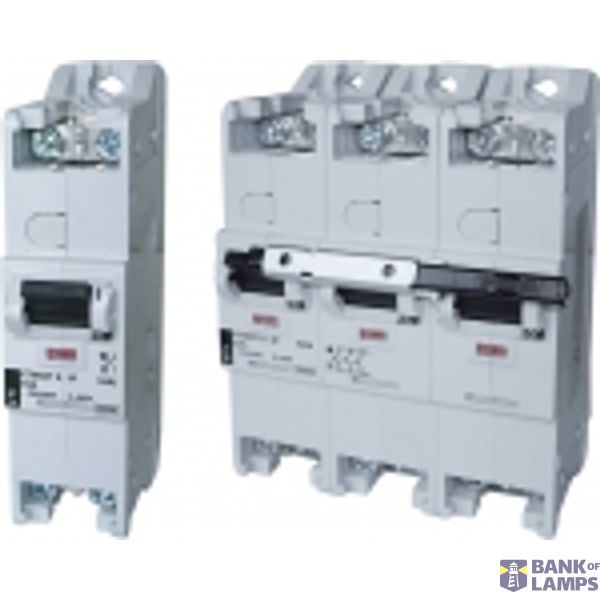

Miniature circuit breaker, ETIMAT S 4P E40, No. Of poles 4, Catalogue Group ETIMAT S, Rated current (A) 40, Tripping characteristic E, Short circuit capacity (kA) 25
