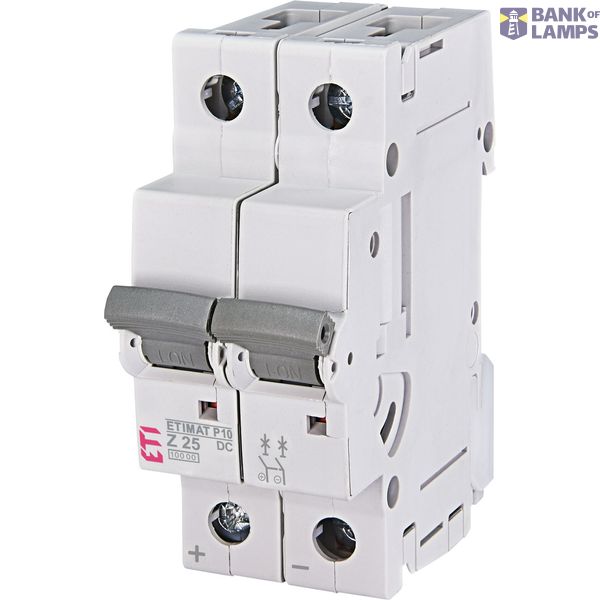

ETIMAT P10-DC 2p Z25

Name: ETIMAT P10-DC 2p Z25
Brand: ETI
Availability: PreOrder

In vendor's stock Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ETIMAT P10-DC 2p Z25
Brand	ETI
ETIM	EC000042
Rated current	25 A
Release characteristic	Z
Width in number of modular spacings	2
Number of poles (total)	2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10 kA

Packing level 1

3838895798781

Voltage type	DC
Frequency	50-60 Hz
Current limiting class	3
Over voltage category	3
Degree of protection (IP)	IP20
Number of protected poles	2
Connectable conductor cross section solid-core	1-25 mm²
Connectable conductor cross section multi-wired	1-25 mm²
Ambient temperature during operating	-25-55 °C
Additional equipment possible	Yes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10 kA
