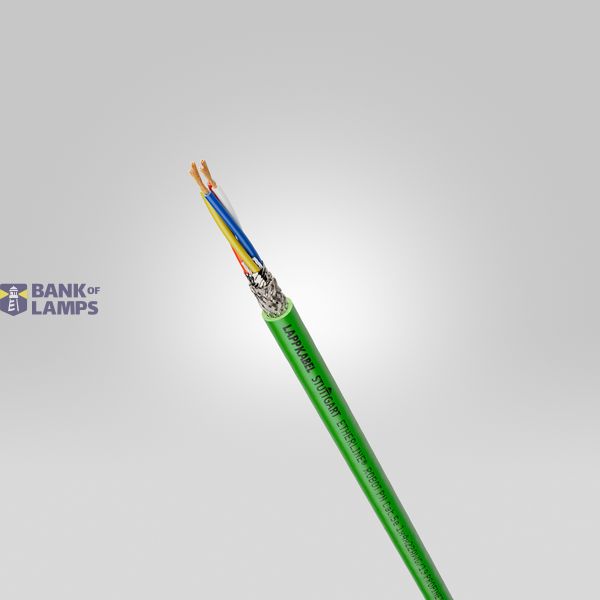

ETHERLINE ROBOT PN Cat.5e 1x4x22AWG/19
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | ETHERLINE ROBOT PN Cat.5e 1x4x22AWG/19 |
| Brand | LAPP |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4995 00 |
| ETIM | EC003249 |
| Nominal cross section conductor | 2 mm² |
| Colour outer sheath | Green |
| Conductor material | Copper |
| Material outer sheath | Polyurethane (PUR) |
| Permitted cable outer temperature during assembling/handling | 0 °C |
| Permitted cable outer temperature after assembling without vibration | 0 °C |
| Number of cores | 2 |
| Halogen free according to IEC 60754-2 | No |
| Low smoke according to IEC 61034-2 | No |
| Outer diameter approx. | 6.5 mm |
| Conductor surface | Bare |
| Min. permitted bending radius, moving application with forced guidance | 78 mm |
| Min. permitted bending radius, moving application/free movement | 78 mm |
| Min. permitted bending radius, stationary application/permanent installation | 52 mm |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Halogen free according to IEC 60754-1 | No |
| Halogen free according to IEC 60754-3 | No |
Packing details
| Packing level 1 | 4044778387532, 4044778387549, 4044778387563, 4044778387556 |
Downloads
Description
Voordelen; Geschikt voor industrieel ethernet in zware industriële omgevingen EMC-geoptimaliseerd ontwerp EMC-afscherming 2-paar: 10/100 Mbit/s voor Industrieel Ethernet Toepassing; geschikt voor EtherCAT en EtherNet/IP-toepassingen Robotica-toepassingen Hoogflexibel en UL/CSA gecertificeerd
