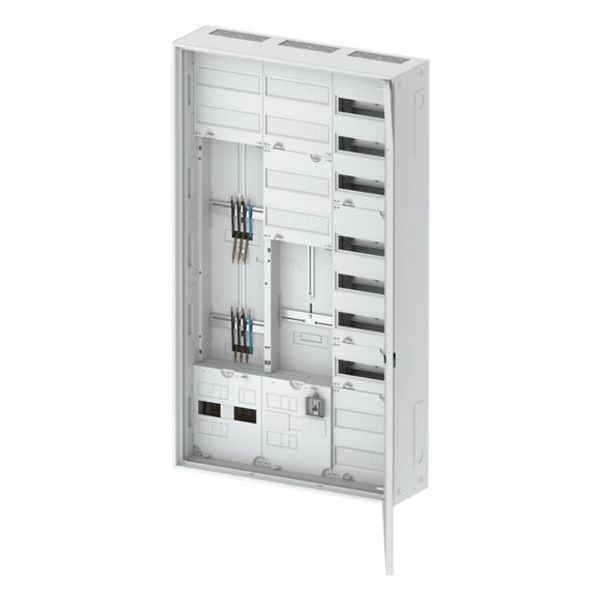

Complete meter cabinet, heat-pump-ready, 3-point mounting, H 1400mm x W 800mm x D 225mm
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
1 600,77 €
EAN: 9010653039655
MPN: EP-501281
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | ZSD-2ZTV-1400/APZ Eaton Metering Board ZSD LV systems Final Distribution Boards |
| Bränd | EATON |
| Kategooriad |
Meter Boxes
|
| Päritoluriik | CZ |
| Harmoneeritud süsteemi kood | 8538 1000 00 |
| Paigaldusviis | Pinnapealne |
| Tunnusvool | 63 A |
| Mõõtekappide arv | 2 |
| Alumine ühendusruum | 5-se kogumislatiga |
| Kaitseaste (IP) | IP31 |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010653039655 |
Muud tehnilised andmed
| Laius | 800 mm |
| Mudel | 2-korruseline |
| Kõrgus | 1400 mm |
| Sügavus | 225 mm |
| Koos montaažiplaadiga | No |
| Sisseehitussügavus | 225 mm |
| Väljade arv | 3 |
| Kõrgus | 1400 mm |
| Laius | 800 mm |
| Materjal | Terasplaat |
| TSG-paneele | 1 |
| Jaotusridade arv | 9 |
Kirjeldus
Complete meter cabinet for 3-point mounting, heat-pump-ready, H 1400mm x W 800mm x D 225mm, surface-mounted enclosure with door, protection class II (protective insulation), plastic covers, IP31 degree of protection, standard VDE 0603-1, Ue 400V AC / In 63A , enclosure made of sheet steel, powder-coated white RAL9016, door hinge can be selected on the right or left, cable entry at the top with a membrane flange, at the bottom with a cable entry flange, on the side via a pre-stamped openings in the sheet metal. Meter plate: Pre-wired, 5-pole, direct connection. NAR meter: 5-pole busbar, to accommodate LSHU switch (SLS) and SPZT123-S overvoltage protection (SPD). NAR TSG: with miniature circuit breaker 1-pole C10/25kA sealable and 7-pole control line board (screwless) as well as feed terminals AKU16/5. AAR meter: with main line branch terminal. Number of meter plates for individual tariffs: 2; Number of TSG plates: 1; Number of distributor rows: 7; with APZ area incl. 6kV patch cable RJ45. Please order accessories such as RJ45 couplers, etc. separately.
