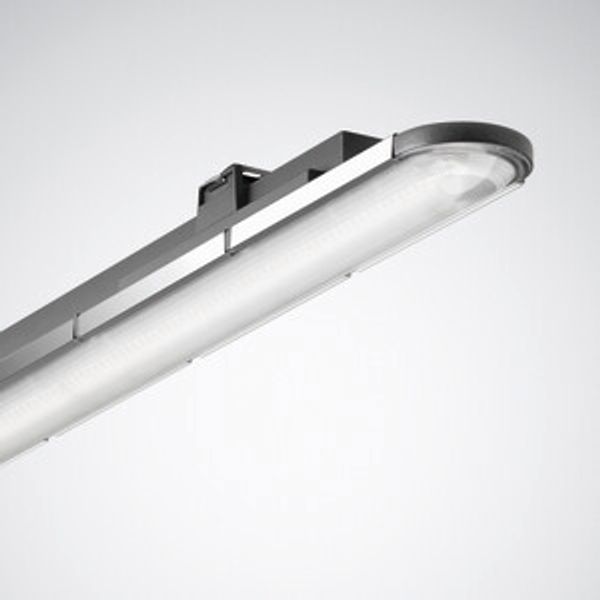

Weather-proof luminaires Nextrema Lens Anthracite ET 39W 5900lm Extreme Wide (XW) IP66 IK08 3 SDCM 6633340

LED weather-proof luminair. With 3 x 1.5 mm2 through-wiring. Quick-connect system type Wieland. With integrated HF motion sensor. With integrated HF motion sensor. Shape of the detection area somewhat ellipsoid, Length of the detection area up to 12 m, Width of the detection area up to 8 m. With the IR remote control available as an accessory, the function parameters of signal strength, hold time and (for luminaires with ETDD switching type) light value and dimming level can be set. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Surface-mounted luminaire for damp rooms and canopied outdoor areas. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Mounting clips and triangular brackets for suspended mounting contained within the scope of supply. Suitable for installing to 190 VZ mounting rail. With wall mounting the luminaire must be protected from unintended disassembly via a separately ordered accessory (ZB ATL1). Optical system consists of primary optics with PC diffuser. With symmetric extremely wide light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 5900 lm, connected load 39 W, maximum luminous efficiency of luminaire 151 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L85(tq 35 °C) = 50,000 h, mean rated service life L80(tq 35 °C) = 85,000 h. Luminaire body of die-cast aluminium. Robust concept with vibration-resistant components. Colour of luminaire body anthracite, Dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK08, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Weight: 3,7 kg. Connection devices at both face ends implemented as socket or plug. Suitable connection socket and plug included in scope of supply. Electrical connection is made without tools. The strain relief of the connecting cable is provided via the M25 cable gland of the quick connection plug. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, switchable. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
