wall-mounting encl. polyester monobloc IP66 430x330x200mm 3p.lock glazed door
Ainult telli
Hind (ilma KM-ta):
529,88 €
EAN: 3606480776557
MPN: NSYPLM43TVG
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | wall-mounting encl. polyester monobloc IP66 430x330x200mm 3p.lock glazed door |
| Bränd | Schneider Electric |
| Kategooriad |
Electrical Enclosures
|
| Päritoluriik | ES |
| Kaitseaste (IP) | IP66 |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | 0 W |
| Max. permissible load of the enclosure according to IEC 62208 | 0 N |
| Max. permissible load of the door(s) according to IEC 62208 | 0 N |
Pakendamise üksikasjad
| Pakkimistase 1 | 3606480776557 |
Muud tehnilised andmed
| Värvus | Hall |
| Laius | 330 mm |
| Kõrgus | 430 mm |
| Sügavus | 200 mm |
| RAL-number | 7035 |
| Koos montaažiplaadiga | No |
| Uste arv | 1 |
| Lukkude arv | 2 |
| EMC-variant | No |
| Klaasuksega | Yes |
| Materjal | Polüester (PET) |
| Materjal | Plast |
| Löögikindlus | IK08 |
| Sobib väliskasutuseks | Yes |
| Sobib metrical mounting | Yes |
| Montaažiplaadi sügavus on seadistatav | No |
| Ventilatsiooniuksega | No |
| Pinna liik | Töötlemata |
| Tagakülje üksega | No |
| Seina sisseehitatud | No |
| Viilkatusega | No |
| Pooluste kinnitus | Yes |
| Kaitseaste (NEMA) | 4X |
| Max. permissible load of the mounting plate according to IEC 62208 | 0 N |
Allalaadimised
Kirjeldus

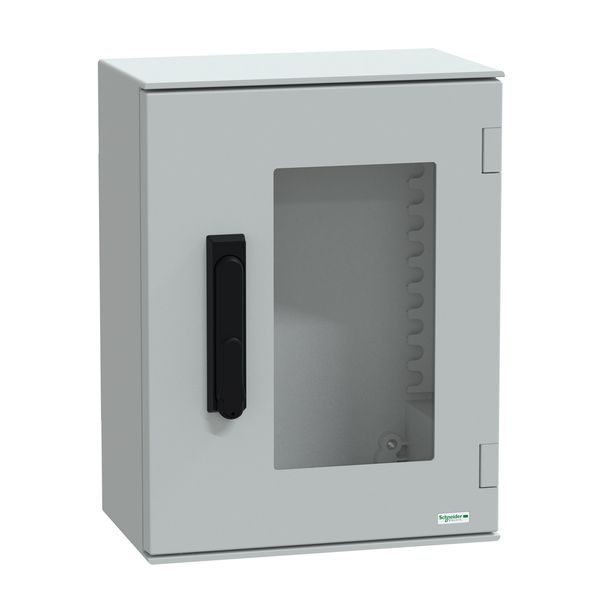

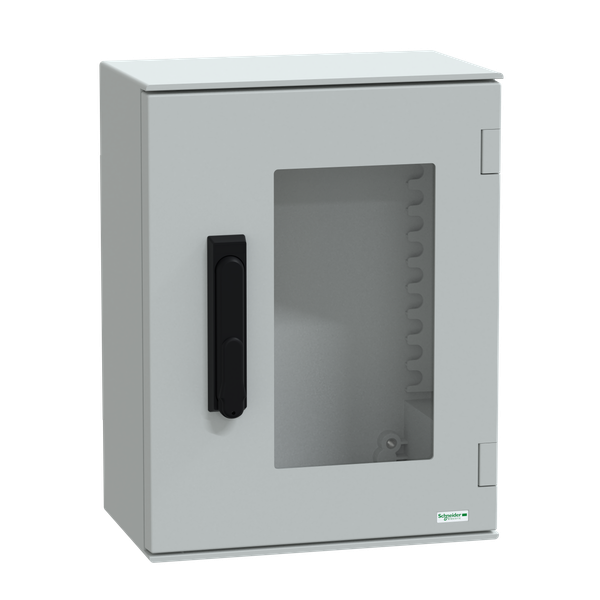

Thalassa PLM wall-mounting polyester enclosure monobloc w/glazed door. 430 x 330 x 200 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13,4X) 960°C fire resistance.
