Wall and ceiling luminaire Invego Vertical Lens Anthracite 4,70W 136lm 90 asymmetric medium wide (AM) IP65 IK07 3 SDCM image 1
TRILUX

Wall and ceiling luminaire Invego Vertical Lens Anthracite 4,70W 136lm 90 asymmetric medium wide (AM) IP65 IK07 3 SDCM

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
224,16 €
Hind kehtib kuni 24.12.25
EAN: 4018242514687
MPN: 7388750
Pakend: 1
Kaubaalus: 216
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi Wall and ceiling luminaire Invego Vertical Lens Anthracite 4,70W 136lm 90 asymmetric medium wide (AM) IP65 IK07 3 SDCM
Bränd TRILUX
Kategooriad Seina- ja laevalgustid
Päritoluriik IT

Pakendamise üksikasjad

Pakkimistase 1 4018242514687, 4018242514687
Pakkimistase 2 4018242810345

Kirjeldus

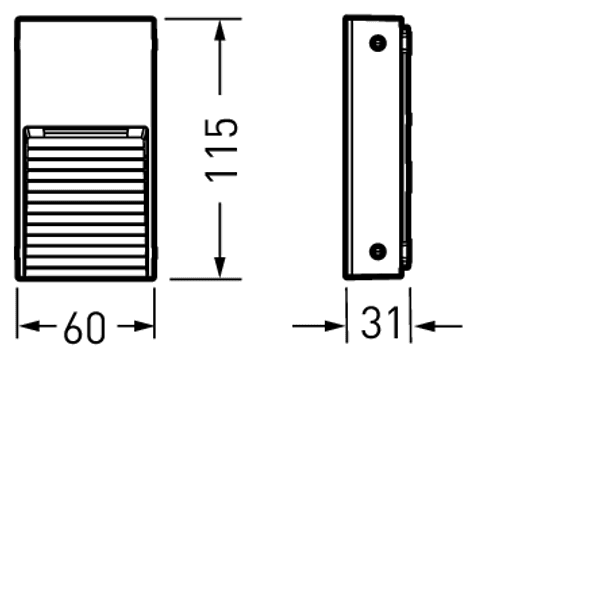

Design-oriented, very flat surface-mounted or recessed luminaire for matching lighting concepts indoors and outdoors. Luminaires in rectangular design for vertical application. For surface-mounting, or using accessories to be ordered separately (Invego...BE concrete casting box with mounting set) for flush installation in indoor and outdoor applications. With asymmetric medium wide light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 136 lm, connected load 4,7 W, maximum luminous efficiency of luminaire 29 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 90. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. Luminaire body of die-cast aluminium. Cover of hardened glass. High impact-resistance. Surface anthracite coated (DB 703). Dimensions (L x W): 115 mm x 60 mm, luminaire height 28 mm. Safety class (EN 61140): III, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK07. Weight: 0,7 kg. With connection cable H05R-NF 2 x 1 mm2, length 900 mm. Power supply of the luminaire is via an external control gear unit to be ordered separately. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
