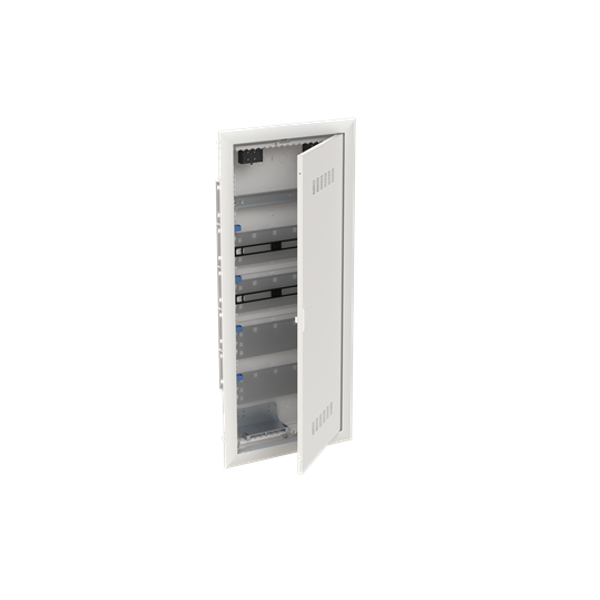

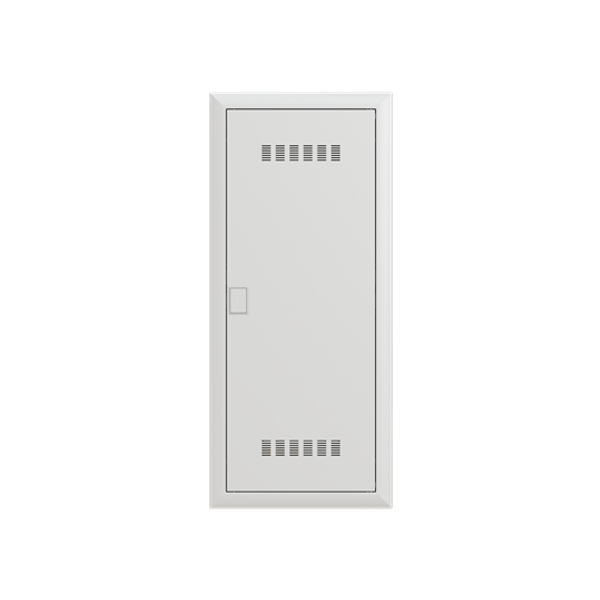

UK650MVB Multimedia unit , 872 mm x 384 mm x 97 mm, Flush mounting, IP30, Single image 1
UK650MVB Multimedia unit , 872 mm x 384 mm x 97 mm, Flush mounting, IP30, Single image 2
UK650MVB Multimedia unit , 872 mm x 384 mm x 97 mm, Flush mounting, IP30, Single thumbnail 1
UK650MVB Multimedia unit , 872 mm x 384 mm x 97 mm, Flush mounting, IP30, Single thumbnail 2
ABB

UK650MVB Multimedia unit , 872 mm x 384 mm x 97 mm, Flush mounting, IP30, Single

Müüja laos
Hind (ilma KM-ta):
149,05 € tk kohta
Hind kehtib kuni 31.12.30
EAN: 4011617314578
MPN: 2CPX031457R9999
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi UK650MVB Multimedia unit , 872 mm x 384 mm x 97 mm, Flush mounting, IP30, Single
Bränd ABB
Kategooriad Small Distribution Boards
Harmoneeritud süsteemi kood 8538 1000 00

Pakendamise üksikasjad

Pakkimistase 1 4011617314578

Kirjeldus

Multimedia unit, series UK600, Expansion option: Lateral and bottom, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 7, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, Powder-coated, in RAL 9016, enclosure out of thermoplast, with frame and ventilated door , door out of sheet steel, in RAL 9016, with TIP-in closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 872 x 384 x 97, Shutter frame dimensions in mm (H x W x D): 872 x 384 x 9, cable fastening rail integrated, assembled with perforated sheet steel mounting plate and DIN rail
