Tripod hinged w. half shell f. tube D40/50mm radius 1330mm angle 10° S

Tripod hinged w. half shell f. tube D40/50mm radius 1330mm angle 10° S image 1

Tripod hinged w. half shell f. tube D40/50mm radius 1330mm angle 10° S image 2

Tripod hinged w. half shell f. tube D40/50mm radius 1330mm angle 10° S

Name: Tripod hinged w. half shell f. tube D40/50mm radius 1330mm angle 10° S
Brand: Dehn
Price: 1801.050 EUR
Availability: PreOrder

Ainult telli

Hind (ilma KM-ta):

1 801,05 €

Hind kehtib kuni 30.06.26

EAN: 4013364478473

MPN: 107391

Pakend: 1

Hinnanguline tarneaeg meie laos (umbes): 2 weeks

Technical Information

Toote seisukord	Uus
Tootja nimi	Tripod hinged w. half shell f. tube D40/50mm radius 1330mm angle 10° S
Bränd	Dehn
Kategooriad	Lightning Protection Components
Päritoluriik*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmoneeritud süsteemi kood	8538 9099 00
Mudel	Kolmjalg
Pinnatöötlus	Töötlemata
Materjal	Roostevaba teras 304 (V2A)

Pakendamise üksikasjad

Pakkimistase 1

4013364478473, 4013364478473

Muud tehnilised andmed

Mass/kaal	15.6 kg
Läbimõõt	2660 mm

Allalaadimised

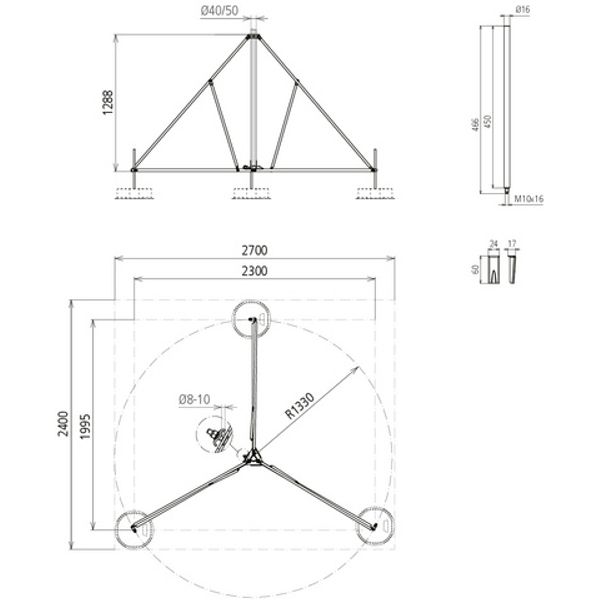

Toote andmeleht Mõõdetud joonis

Kirjeldus

Tripod (hinged design) for supporting tubes D 50 mm with side outlet or air-termination rod D 40 mm with reduction accessories. With double clamp for the connection 2x Rd 8–10 mm, for erection with concrete base (weight 17 kg) with adjustment to the roof slope to a max. of 10° using the base holder set.
