TeSys Deca contactor - 4P(2 NO + 2 NC) - AC-1 - <lt/>= 440 V 25 A - 120 V AC coil
Laos: Ei
Hankija laovaru: Jah
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
72,47 €
EAN: 3389110288506
MPN: LC1D128G7
Pakend: 1
Karp: 16
Kaubaalus: 240
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | TeSys Deca contactor - 4P(2 NO + 2 NC) - AC-1 - = 440 V 25 A - 120 V AC coil |
| Bränd | Schneider Electric |
| Kategooriad |
AC Power Contactors
|
| Päritoluriik | ID |
| Harmoneeritud süsteemi kood | 8536 4900 00 |
| Tunnustalitlusvõimsus, AC-3, 400 V | 0 kW |
| Normaalselt avatud peakontaktide arv | 2 |
| Normaalselt suletud peakontaktide arv | 2 |
| Tunnus-talitlusvool Ie, AC-3, 400 V | 0 A |
| Juhtahelate tunnus-toitepinge, AC 50 Hz | 120 V |
| Juhtahelate tunnus-toitepinge, AC 60 Hz | 120 V |
| Peaahela ühendusviis | Kruviühendus |
| Aktiveerimispinge liik | AC |
Pakendamise üksikasjad
| Pakkimistase 1 | 3389110288506 |
| Pakkimistase 2 | 3389110288503 |
| Pakkimistase 3 | 3389110288506 |
Muud tehnilised andmed
| Sobib DIN paigalduspaneelidele | No |
| Normaalselt avatud abikontaktide arv | 1 |
| Normaalselt suletud abikontaktide arv | 1 |
| Tunnus-talitlusvool Ie, AC-1, 400 V | 25 A |
| Nimitöövool AC-4, 400 V korral | 0 A |
| Tunnustalitlusvõimsus Ie, AC-4, 400 V | 0 kW |
| Tunnustalitlusvõimsus (NEMA) | 0 kW |
Allalaadimised
ECOP (Keskkonna hea tava kood)
EPD deklaratsioon (Keskkonnatoote deklaratsioon)
CE DOC deklaratsioon (CE vastavusdeklaratsioon)
Tehniline käsiraamat
Muu
Paigaldusjuhend
Kirjeldus

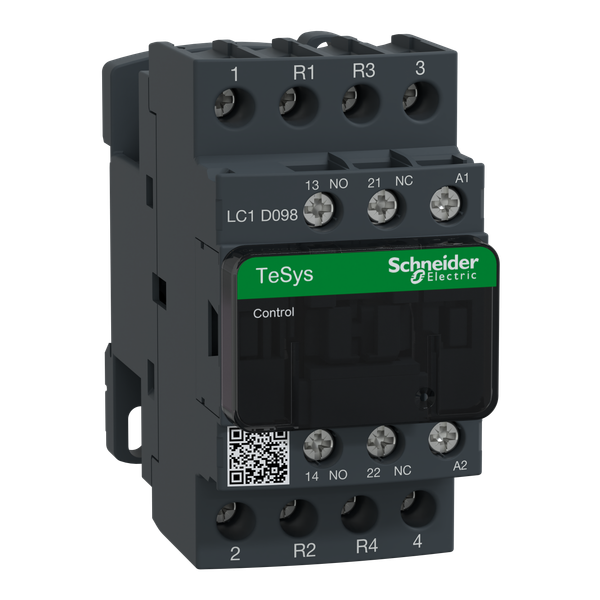

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 25A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.80 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
