TECTON TM 750 SR IP64 - Electrical centre feed, silver image 1
TECTON TM 750 SR IP64 - Electrical centre feed, silver image 2
TECTON TM 750 SR IP64 - Electrical centre feed, silver thumbnail 1
TECTON TM 750 SR IP64 - Electrical centre feed, silver thumbnail 2
Zumtobel

Electrical centre feed, silver

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
181,17 €
Hind kehtib kuni 24.12.25
EAN: 9010299517791
MPN: 22171620
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi TECTON TM 750 SR IP64 - Electrical centre feed, silver
Bränd Zumtobel
Kategooriad Valgusti tarvikud
Päritoluriik AT
Harmoneeritud süsteemi kood 8536 9001 00
Värvus Hõbedane
Lisatarviku liik Sisendliini toide

Pakendamise üksikasjad

Pakkimistase 1 9010299517791, 9010299517791

Allalaadimised

REACH süvalink RoHS deklaratsioon Müügibrošüür

Videos

Kirjeldus

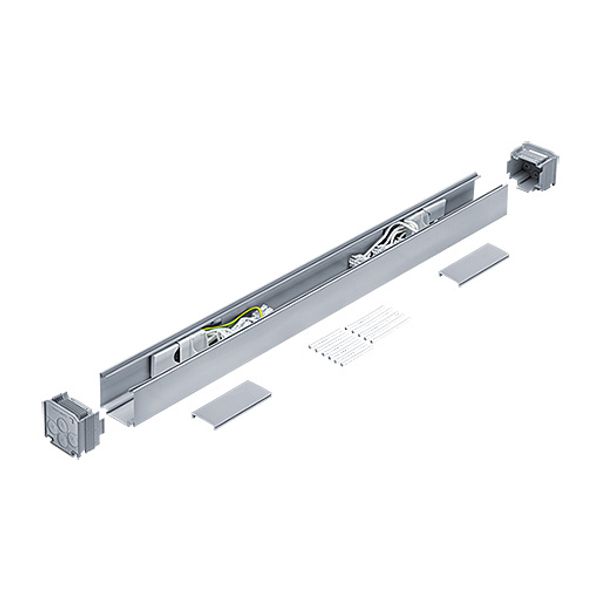

Electrical centre feed, silver for electrical connection of the continuous row system. 2 sets with plug-in connecting terminals for 5 mains power lines, 2 x 2 emergency lighting conductors and 2 control lines for central load distribution. Corrosion-protected mounting rail made of roll-formed, hot-dip galvanised sheet steel with zinc-magnesium coating and polyester lacquer finish in silver. Scope of delivery includes 11x protective tubing, 2 sealing end cap sets (end caps + cover strips) and 2 touch protection caps for termination of the current conduction profile at the end of the continuous row. The centre feed can be covered with the ends of two TECTON C IP64 luminaires (L1000, L1500, L2000) or with cover strips. Always start mounting of luminaires in the centre feed area. Complete continuous row lighting system complies with protection rating IP64 if the configuration is limited to the following components (core system): fixing elements, mounting rails, input/output modules, cover strips, TECTON C continuous row luminaires, CRAFT II high-bay luminaires. Complete continuous row lighting system complies with protection rating IP54 if the configuration includes one or more of following components (extended system): RESCLITE PRO emergency luminaires, CROSSIGN escape sign luminaires, sensors, wireless controls. Dimensions: 750 x 60 x 54 mm; weight: 1.45 kg
