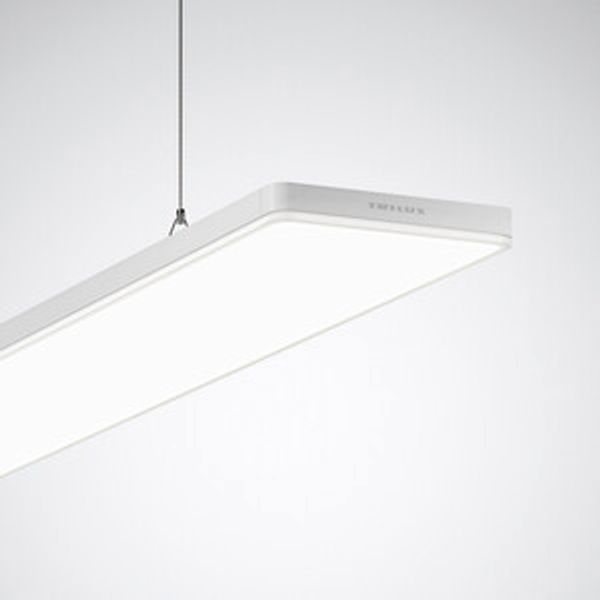

Suspended luminaires Lunexo H HCL Prisms White ETDD8 68W 6500lm Wide reduced glare UGR19 (W19) IK03 3 SDCM 6979862

Exclusive rectangular suspended LED luminaire with rounded corners and visible light edge. With integrated LiveLink sensor for connecting to a LiveLink control unit, for daylight-dependent control and presence detection. LiveLink sensor MSensor G3 PIR 5DPI for daylight-dependent control and presence detection. Constant light control with switch-off function with sufficient daylight. Passive infrared presence sensor, with high-sensitivity multi-segment pyro-sensors, settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use. Connection and electrical supply via the DALI interface of the LiveLink control unit. Number of occupied DALI devices: 5. Detection range: Ø 4,5 m, Mounting height 2,5 m - 5 m. Suspended luminaire for single luminaire applications. Suspended mounting via Y-wire suspension contained in scope of supply. With inner CDP-I microprismatics. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. VDU workstation-compliant in accordance with 12464-1 With HCL equipment for controlling the light color by means of a separate control unit (DT8). Luminaire luminous flux 6500 lm, connected load 68 W, maximum luminous efficiency of luminaire 107 lm/W. Light colour variable (warm white - daylight white), correlated colour temperature (CCT) variable (2700 K - 6500 K), general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. Luminaire body of extruded aluminium profile. End caps of die-cast aluminium. Surface coated white (RAL 9016). Dimensions (L x W): 1200 mm x 200 mm, luminaire height 45 mm. Permissible ambient temperature (ta): - +25 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 9,0 kg. Wire suspension and electric connection cable included in scope of supply. Standard suspension length: 1500 mm. With electronic control gear unit for switching, dimming and controlling the light colour using DALI Device Type 8-capable control unit. Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Number of occupied DALI devices: 4. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
