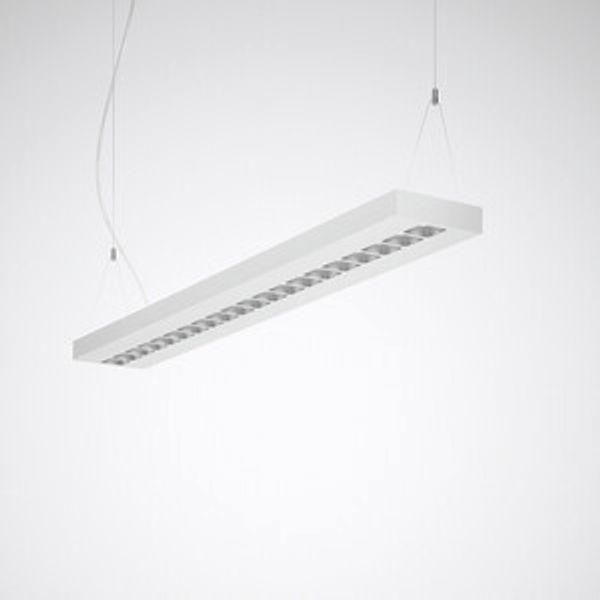

Suspended luminaires Creavo H Lens White ETDD 36W 4600lm Emergency light Wide reduced glare UGR19 (W19) IK03 3 SDCM

Suspended LED luminaire with highly efficient light elements made of lens systems and cubic screening elements. In emergency light version with single battery system, nominal operation time 3 hours. For individual or continuous line applications by means of accessories to be ordered separately. Suitable for through-wiring. The optical system with a precisely coordinated combination of LED lenses and anti-glare elements provides very high visual comfort with very high photometric performance. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 1500 cd/m2 for beam angle above 65° all-round. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4600 lm, connected load 36 W, maximum luminous efficiency of luminaire 128 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 90,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated white (RAL 9016). Screening cubes silver-grey, with fine surface structure (RAL 7001). Dimensions (L x W): 1209 mm x 170 mm, luminaire height 46 mm. The screening cubes can be realised in further RAL colours on request. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 6,1 kg. With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires with a harmonised appearance. Project-specific versions with varying luminaire characteristics are possible on request. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
