Surge arrester terminal block 2-pole DEHNconnect SD2
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Pole saadaval
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | Surge arrester terminal block 2-pole DEHNconnect SD2 |
| Bränd | Dehn |
| Päritoluriik | DE |
| Harmoneeritud süsteemi kood | 8536 3010 00 |
| Paigaldusviis | DIN-latt (paigaldusliist) 35 mm |
| Ühendus 1 | Push-in terminal |
| Juhtide arv (ilma maanduseta) | 2 |
| Piirsagedus | 100 MHz |
| Plahvatuskindel variant | Yes |
| Suurim kestevpinge AC | 6 V |
| Nimilahendusvool (8/20) | 10 kA |
| Nimikoormusvool | 0.5 A |
| Pingekaitsenivoo soonte vahel | 14 V |
| Pingekaitsenivoo soone ja maa vahel | 650 V |
| Signaal seadme juures | Puudub |
| Suurim kestevpinge DC | 8.5 V |
| Kaitseaste (IP) | Muul viisil |
| Nimipinge DC | 5 V |
| Assembly width | 6 mm |
| Signal disconnection | Yes |
| Earthing via | DIN-latt (paigaldusliist) |
Pakendamise üksikasjad
| Pakkimistase 1 | 4013364150621, 4013364150621 |
Allalaadimised
Kirjeldus

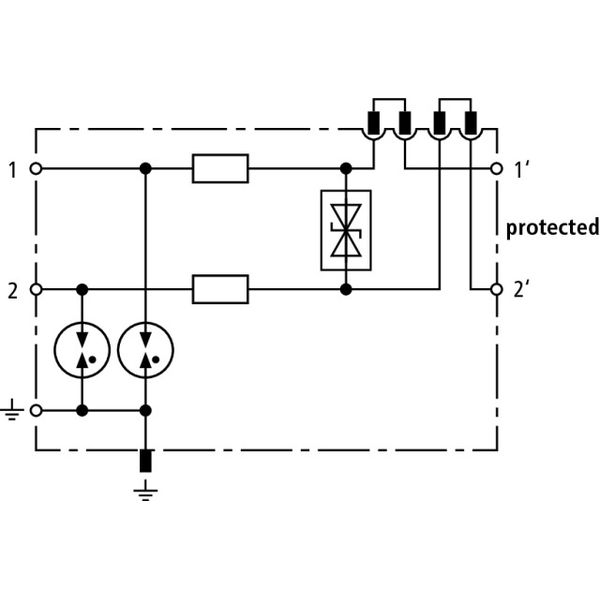

DEHNconnect SD2 terminal block with integrated surge protection. Energy-coordinated two stage arrester for protecting balanced and unbalanced interfaces with extra-low voltages. Signal circuits can be disconnected by removing the plug-in part. Also suitable for high transmission rates due to a diode matrix with minimised capacitance. It is advisable to use SAK shield connection systems for shielded bus lines.
Tarvik
In stock: No
Pole saadaval
Dehn
Disconnection module Disconnect SD2
N/A
EAN: 4013364150676
MPN: 917900
Pakend: 1
