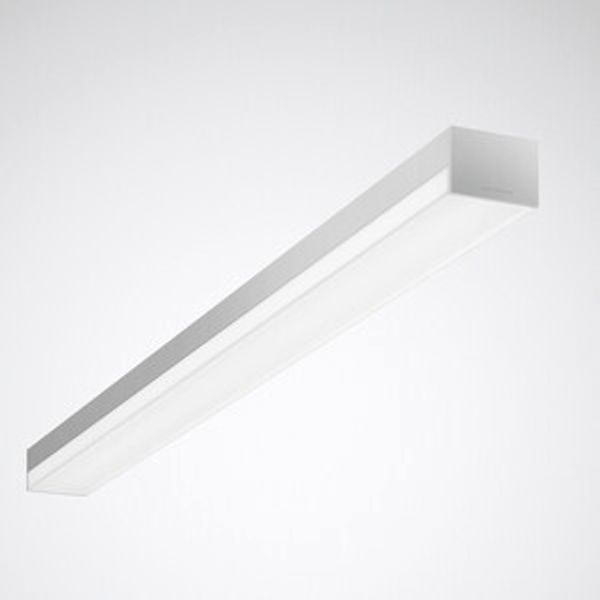

Surface-mounted luminaire Solvan Flow D HCL Prisms Aluminium rectangular ETDD8 33W 4500lm Wide reduced glare UGR19 (W19) IK03 3 SDCM

Surface-mounted LED luminaire for single use or trunking applications. Surface-mounted luminaire for ceiling mounting. With separately ordered installation accessories also suitable for use in strip ceilings (SFlow ZBP L2). For strip ceilings in module 100. Also suitable for suspended mounting by means of accessories to be ordered separately (ZS1P 2000). With highly efficient CDP microprism. The microstructured PMMA prism surface of the optical system has a glare-reducing effect, is non-yellowing and does not cloud. Internal prismatic structure, room side cover surface smooth. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 1500 cd/m2 for beam angle above 65° all-round. With HCL equipment for controlling the light color by means of a separate control unit (DT8). LED panels configured with warm white and daylight white light colour LEDs. Luminaire luminous flux 4400 lm, connected load 37 W, maximum luminous efficiency of luminaire 138 lm/W. Light colour variable (warm white - daylight white), correlated colour temperature (CCT) variable (2700 K - 6500 K), general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated silver-grey (RAL 9006). Dimensions (L x W): 1413 mm x 100 mm, luminaire height 70 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 4,6 kg. With electronic control gear unit for switching, dimming and controlling the light colour using DALI Device Type 8-enabled control unit. Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
